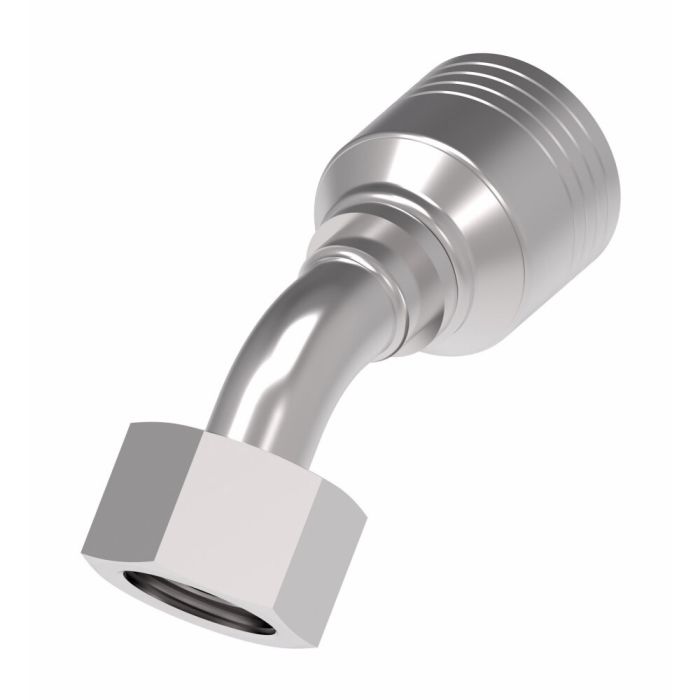

main product photo

Fitting (Perm) 4S

Ask A Question

Description & Features

This Eaton Aeroquip Fitting (Perm) 4S features a female swivel DIN 24 seat and a 45-degree elbow. Designed for use with -8 hose dash size, this fitting assembly ensures secure and reliable connections in hydraulic systems.

Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended hose assembly life. Its innovative design ensures performance and maximum uptime in demanding applications.

SKU: 4S12DSA8

Supplier Part Number (MPN): 4S12DSA8

Alternate Part Numbers: 08051399, MI-07585390

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.41 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS DIN 24 deg Seat Swivel
Construction Style
Crimp
Cut-Off Factor
2.24 in
Dimension Standards
SAE J1176
Dimensions
4 in L x 1.34 in W x 2.2 in H
Drop Dimensions
0.94 in
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
1.188 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M24x1.5

Product Questions & Answers (2)

Question by: Curt S on Jan 17, 2026, 9:17 AM
What kind of corrosion resistance can I expect from this fitting?
Answer by: Customer Support on Jan 19, 2026, 6:01 AM
The Dura-Kote plating is included to give it superior corrosion resistance, helping the hose assembly last longer.
Question by: Randy S on Apr 16, 2025, 1:10 PM
Got a -8 hose I need to terminate with a female swivel on the end, angled at 45 degrees. This the right fitting for that?
Answer by: Customer Support on Apr 18, 2025, 6:40 AM
For a -8 hose dash size with a female swivel DIN 24 seat and a 45-degree elbow, yes, that is exactly what this fitting is built for. It is a permanent-style assembly, so keep in mind it is meant to be crimped or permanently attached rather than field-reusable. The carbon steel construction with Dura-Kote plating holds up well in environments where corrosion is a concern, which helps extend the life of the whole hose assembly.
