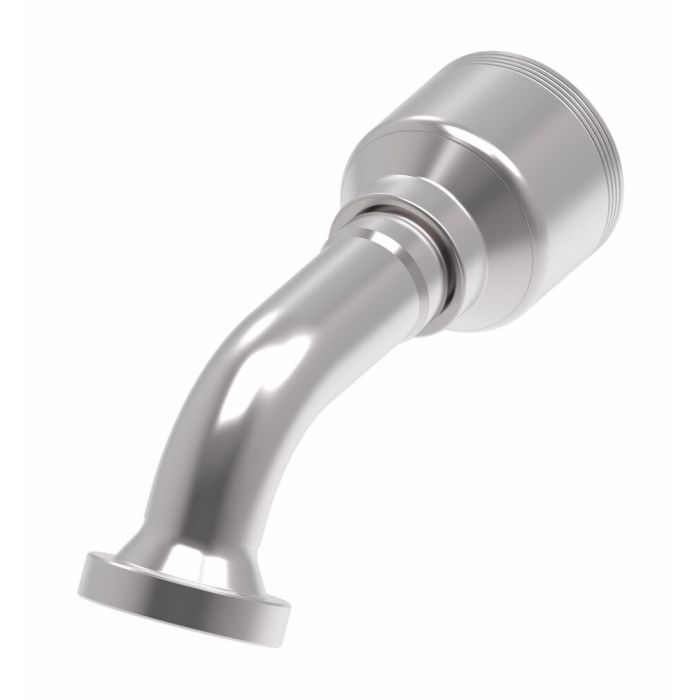

Designed for high-pressure hydraulic systems requiring a 60° elbow configuration, the Split Flange Code 62 60° is an Eaton Aeroquip 4S Series crimp hose fitting built to SAE J1176 certification standards. Constructed from carbon steel with a -12 hose dash size, it connects a flanged end to a line or hose end using a Code 62 SAE split flange interface.
Dura-Kote plating provides strong corrosion resistance suited to demanding service environments. The fitting is system-engineered as part of Eaton Aeroquip's 4-wire spiral TTC assembly lineup, supporting extended hose assembly service life and reliable uptime in hydraulic circuits where angular routing is required.
SKU: 4S12FHG12
Supplier Part Number (MPN): 4S12FHG12
Alternate Part Numbers: MI-08051410, MINO-00015X01044
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051410, Alternate Part Number MINO-00015X01044, Alternate Part Number MINO-00925X11020
Certifications
SAE J1176
Drop Dimension
1.48
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-12
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.84
Sub Brand
None
Supplier Part Number
4S12FHG12
Product Weight
1.02 lbs
Product Questions & Answers (2)
Question by: Neal A on Feb 26, 2026, 3:21 PM
Will this fitting work with a standard Code 62 flange? Just making sure before I order.
Answer by: Customer Support on Feb 27, 2026, 6:12 PM
Yes, this Eaton Aeroquip fitting is designed to be compatible with SAE Code 62 flanges.
Question by: Jimmy S on Jun 27, 2025, 10:19 AM
what's the angle on this flange fitting, and is it the 60 degree version or something else?
Answer by: Customer Support on Jun 29, 2025, 8:57 AM
the 60 degree elbow is exactly what this is. It's a Code 62 split flange configuration built for hose assemblies running in tighter routing situations where a straight fitting just won't lay right. The -12 hose dash size puts it in line with most medium to large bore hydraulic hose setups, and the carbon steel construction with Dura-Kote plating gives it solid corrosion resistance for shop and field use alike.
