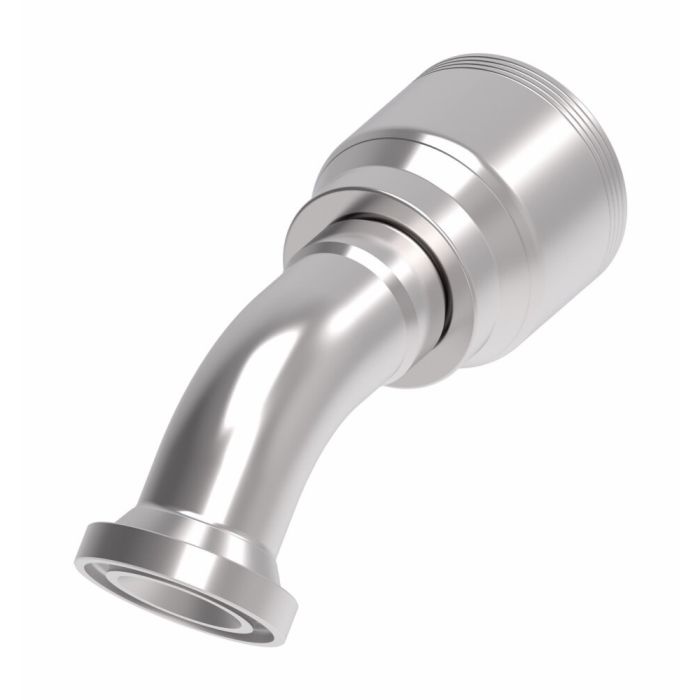

Ftng (Perm) 4Spiral

Description & Features

Engineered for durability and precision, the Ftng (Perm) 4Spiral is a premium hose fitting designed to meet rigorous industry standards. Made from robust carbon steel, this fitting ensures reliable performance in demanding hydraulic applications. It features a 45-degree SAE Code 61 flange elbow, ideal for high-pressure environments. The fitting's Dura-Kote plating offers superior corrosion resistance, enhancing longevity in harsh conditions.

With a drop dimension of 1.0600 and a hose dash size of -16, this fitting is crafted for seamless integration into complex hydraulic systems. The innovative design is system engineered to extend hose assembly life, maximizing uptime and efficiency. Certified to SAE J1176, it meets stringent quality benchmarks, making it a dependable choice for industrial applications.

SKU: 4S12FLA16

Supplier Part Number (MPN): 4S12FLA16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.6 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.04 in	Dimension Standards SAE J1176	Dimensions 5.37 in L x 2.084 in W x 2.85 in H	Drop Dimensions 1.06 in	End Size 1 12	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Kent B on Jun 11, 2025, 6:38 PM

What's the deal with that Dura-Kote plating, is it gonna hold up if this thing's outside a lot?

Answer by: Customer Support on Jun 13, 2025, 1:11 PM

Dura-Kote plating is there to give this fitting some serious resistance to corrosion, so yeah, it should hold up well even if it's spending a lot of time outdoors.
