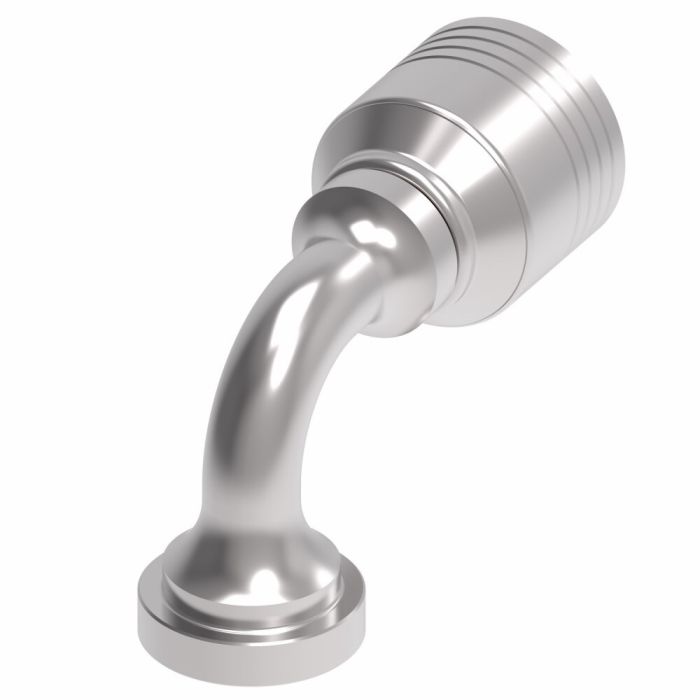

Designed for SAE Code 61 flange connections, this carbon steel 90-degree elbow fitting from the Aeroquip 4S Series is built for permanent crimp hose assemblies in demanding hydraulic applications. The -10 hose dash size and flanged end type make it well-suited for high-pressure hydraulic systems where a secure, leak-resistant connection is critical.
The Fitting (Perm) 4S carries Dura-Kote plating for corrosion resistance, extending service life in harsh environments. Certified to SAE J1176, it is system-engineered to support extended hose assembly performance and maximum uptime. The flanged-to-hose configuration accommodates a drop dimension of 2.13 inches, with a product width of 1.5 inches.
SKU: 4S12FLB10
Supplier Part Number (MPN): 4S12FLB10
|
Alternate Part Numbers
MINO-00925X11026
|
Certifications
SAE J1176
|
Drop Dimension
2.13
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-10
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.50
|
Sub Brand
None
|
Supplier Part Number
4S12FLB10
|
Product Weight
0.55 lbs
|
