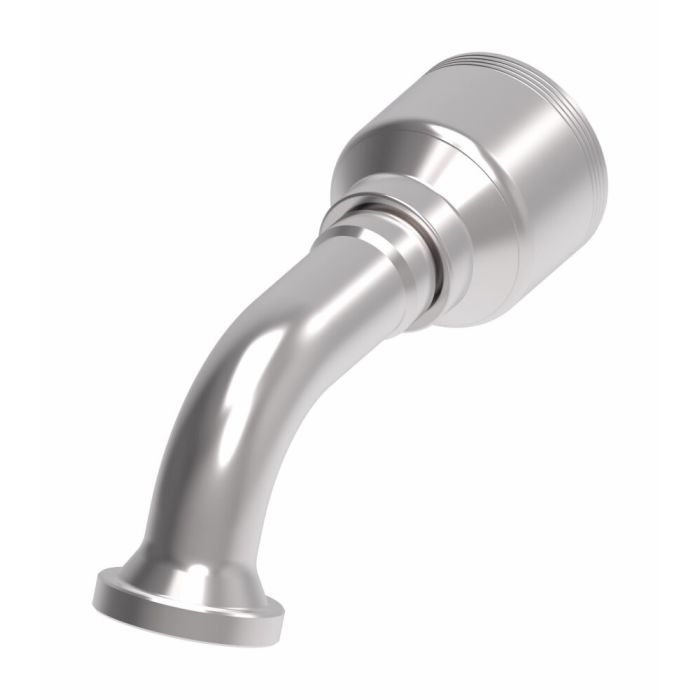

Designed for high-pressure hydraulic hose assemblies, the Split Flange Code 61 67.5° is a carbon steel crimp fitting from Eaton Aeroquip's 4S Series, engineered to handle four-wire spiral hose configurations. The 67.5° elbow geometry suits installations where standard 45° or 90° angles would compromise routing clearance or hose bend radius. At hose dash size -12, it pairs a flanged end with a hose/line end, conforming to SAE J1176 certification standards for Code 61 flange connections.
Dura-Kote plating provides corrosion resistance suited to demanding service environments. The system-engineered design is intended to extend hose assembly service life and support consistent uptime in hydraulic circuits where reliable flange connections are critical. At 1.98 lb, the fitting is a compact assembly-ready component with a 1.84-inch width profile.
SKU: 4S12FLE12
Supplier Part Number (MPN): 4S12FLE12
|
Alternate Part Numbers
MINO-00015X01057
|
Certifications
SAE J1176
|
Drop Dimension
1.70
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-12
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.84
|
Sub Brand
None
|
Supplier Part Number
4S12FLE12
|
Product Weight
0.98 lbs
|
