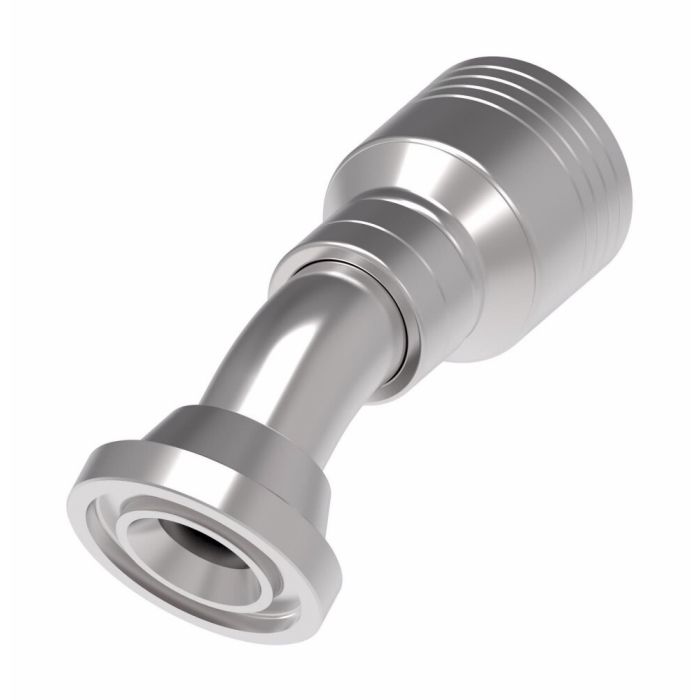

A SAE Code 61 flanged, 30-degree elbow configuration, this Aeroquip 4S Series permanent crimp hose fitting is designed for demanding hydraulic circuit connections where reliable flange-to-hose termination is required. Constructed from carbon steel and certified to SAE J1176, it is suited for use in industrial hydraulic systems where consistent performance and assembly integrity are priorities.
The Ftng (perm), 4-sprl carries a -8 hose dash size and features one flanged end paired with a line/hose/tube end, making it well-suited for routing hose assemblies to SAE Code 61 flange ports. Dura-Kote plating provides corrosion resistance across the fitting body, while the system-engineered design supports extended hose assembly service life and maximum uptime in demanding duty cycles.
SKU: 4S12FLF8
Supplier Part Number (MPN): 4S12FLF8
|
Alternate Part Numbers
MINO-00015X01060
|
Certifications
SAE J1176
|
Drop Dimension
0.53
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-8
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.50
|
Sub Brand
None
|
Supplier Part Number
4S12FLF8
|
Product Weight
0.66 lbs
|
