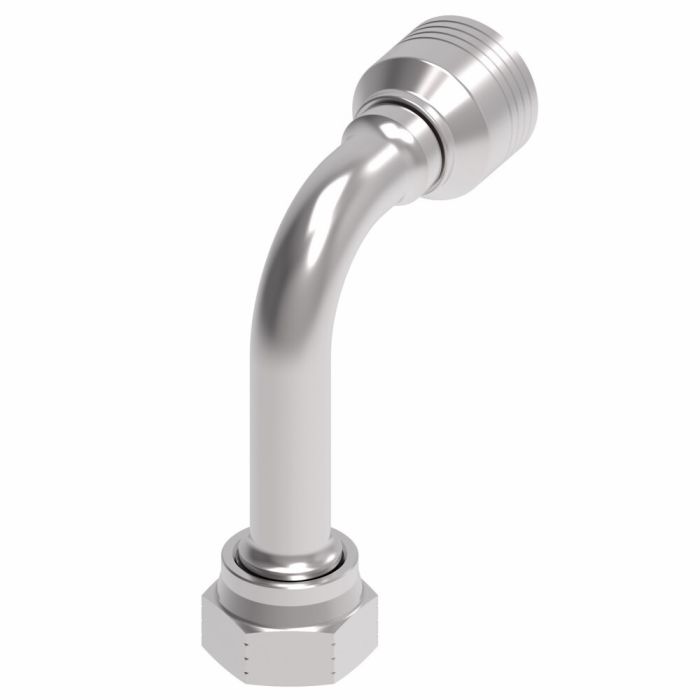

main product photo

Fitting (Perm) 4S

Ask A Question

Description & Features

A 90-degree long drop elbow configuration in carbon steel, this -10 dash size crimp hose fitting is designed for use with 4S Series permanent hose assemblies. The female ORS swivel end provides a reliable, leak-resistant connection on the line side, while the 4.350-inch drop dimension accommodates routing in space-constrained hydraulic circuits. Manufactured to SAE J1176 standards, it is suitable for demanding industrial hydraulic applications where consistent performance and assembly longevity are required.

The Fitting (Perm) 4S features Dura-Kote plating for corrosion resistance, extending service life in environments where moisture or contaminants are a concern. Engineered as part of a complete hose assembly system, the fitting is designed to work in combination with compatible Eaton Aeroquip hose and crimp tooling to support maximum uptime. Sourced from Eaton Aeroquip's Van Wert, Ohio facility, this item ships as an individual fitting assembly.

SKU: 4S12FRC10

Supplier Part Number (MPN): 4S12FRC10

Specifications

Alternate Part Numbers
Alternate Part Number MINO-00925X11033
Certifications
SAE J1176
Drop Dimension
4.35
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
ORS
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-10
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.48
Sub Brand
None
Supplier Part Number
4S12FRC10
Product Weight
0.75 lbs

Related Documents

Product Questions & Answers (3)

Question by: Rusty F on Sep 29, 2025, 6:18 PM
got a -10 hose and need a 90 with a long drop, is this the right kinda end for an ORS swivel setup?
Answer by: Customer Support on Oct 1, 2025, 8:17 AM
For a -10 dash permanent crimp assembly in the 4S Series, this fitting matches that setup. It is a 90 degree long drop elbow with a female ORS swivel on the line side, and the listed drop dimension is 4.350 inches for routing where you need extra clearance.
Question by: Brent M on Oct 3, 2025, 6:22 PM
What kind of fluid can this handle?
Answer by: Customer Support on Oct 4, 2025, 7:56 PM
The product data includes a link to a fluid compatibility document provided by Eaton. You can refer to that document for specifics on compatible fluids.
Question by: Wayne T on Oct 21, 2025, 1:10 PM
Got a tight routing situation on a press line and need something with a good drop to clear some fittings. How far does this one actually drop?
Answer by: Customer Support on Oct 23, 2025, 10:35 AM
The drop dimension on this fitting comes in at 4.350 inches, which gives you a fair amount of clearance for routing around obstructions in close-quarters hydraulic setups. The 90-degree long drop elbow configuration is specifically what makes it useful in those kinds of space-constrained circuits where a standard elbow just won't clear what it needs to.
