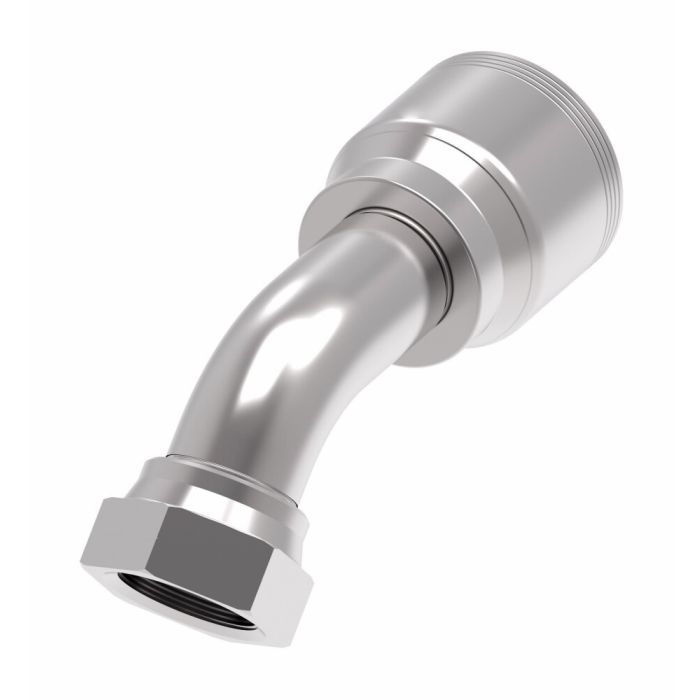

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is expertly engineered to ensure high performance and reliability in demanding industrial environments.
Manufactured from durable carbon steel it features Dura-Kote plating providing exceptional corrosion resistance to extend the fitting's lifecycle.
Designed in accordance with SAE J1176 standards it is crafted to deliver maximum uptime and system efficacy.
Perfectly suited for -16 hose dash sizes the fitting supports a female_1 BSPP connection with a 1-inch end size ensuring robust and secure connections in various industrial applications.
This fitting is an ideal choice for enhancing hose assembly resilience thanks to its innovative design aimed at combatting wear and tear.
MPN: 4S16BFA16
Supplier Part Number: 4S16BFA16
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051443, Alternate Part Number MINO-00015X01076, Alternate Part Number MINO-00925F09894
Certifications
SAE J1176
Drop Dimension
1.18
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
1
End Type 1
BSPP
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.08
Sub Brand
None
Supplier Part Number
4S16BFA16
Product Weight
1.16 lbs
Product Questions & Answers (1)
Question by: Freddie S on Mar 14, 2026, 7:14 AM
fitting says BSPP on one end, does that mean it won't work with NPT ports, or is there some wiggle room there?
Answer by: Customer Support on Mar 15, 2026, 1:27 PM
BSPP and NPT are not interchangeable. The thread profiles are different enough that mixing them creates leak points, even if they seem to thread together at first. This fitting has a 1-inch BSPP female connection on one end, so the port or adapter it connects to needs to be BSPP as well. If your system runs NPT, you'd need a separate adapter fitting to bridge the two standards.
