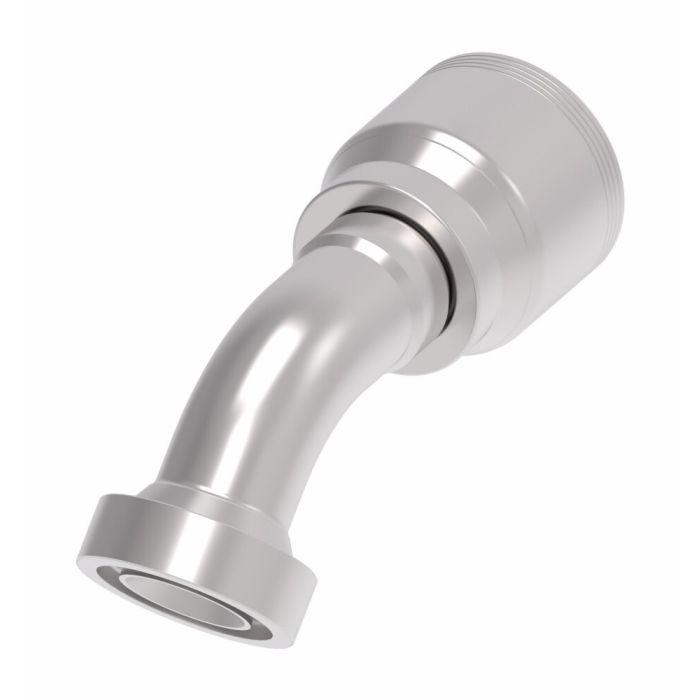

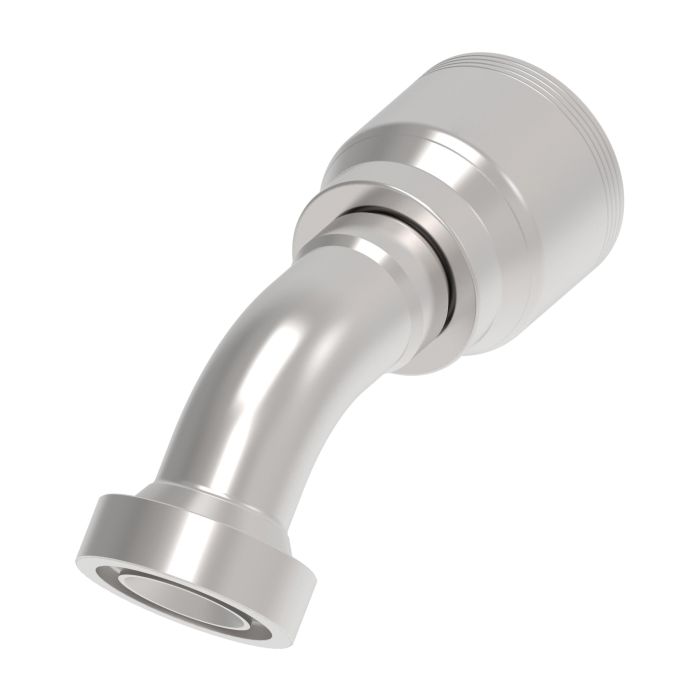

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Danfoss / Eaton 4S Series Crimp Hose Fittings CAT Flange 45 Elbow are engineered for superior performance in industrial applications. These fittings are designed with Dura-Kote plating which offers exceptional corrosion resistance thereby extending the life of your hose assemblies.

The innovative design of these fittings ensures maximum uptime and reliability. Constructed from durable carbon steel they are built to withstand demanding working conditions. Compliance with SAE J1176 standards ensures high-quality performance.

This product features a flanged end type on one side and a line/hose/tube end type on the other making it versatile and suitable for various connections. The drop dimension is 1.3900 and the product width is 2.08 ensuring a snug fit and ease of installation.

Certifications: SAE J1176

Supplier Part Number: 4S16CTA16

MPN: 4S16CTA16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.29 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 3.72 in	Dimension Standards SAE J1176	Dimensions 6 in L x 2.08 in W x 3.4 in H	Drop Dimensions 1.39 in	End Size 1 16	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Daryl R on Jun 27, 2025, 7:54 AM

What's the advantage of having that Dura-Kote plating on this fitting?

Answer by: Customer Support on Jun 28, 2025, 9:07 PM

Dura-Kote plating gives this fitting better corrosion resistance, which should help your hose assemblies last longer.
