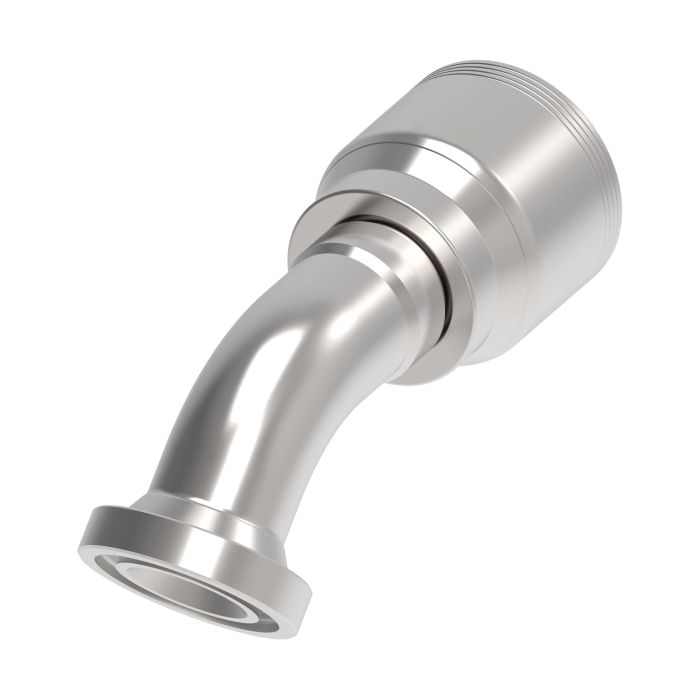

Ftng (Perm) 4S series

Description & Features

Featuring robust construction with carbon steel, this fitting assembly is engineered for reliability in demanding hydraulic applications. The 4S series crimp hose fittings incorporate a SAE Code 62 Flange with a 45-degree elbow, making them ideal for connecting flanged components to lines, hoses, or tubes. The Dura-Kote plating ensures superior corrosion resistance, enhancing the longevity of the fittings in harsh environments.

Designed by Aeroquip, these fittings are known for their innovative design, which maximizes performance and extends hose assembly life. With a drop dimension of 1.1000 and a hose dash size of -16, the Ftng (Perm) 4S series is suitable for a broad range of industrial settings. The precision-engineered system ensures maximum uptime and compatibility with various hydraulic systems.

SKU: 4S16FHA16.028

Supplier Part Number (MPN): 4S16FHA16.028

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.15 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 3.59 in	Dimension Standards SAE J1176	Drop Dimensions 1.1 in	End Connection Torque 96 to 111 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 45 deg Elbow	Hose Dash Size 16	Inside Diameter 3/4 in	Material Steel	Material Construction Carbon Steel	Seal Material EPDM	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Ricky G on Sep 13, 2025, 2:13 PM

Can this fitting handle some tough environments, like where there's a lot of rust or corrosion going on?

Answer by: Customer Support on Sep 15, 2025, 7:23 AM

Dura-Kote plating gives it good protection against corrosion, which should help it last longer in those kinds of conditions.
