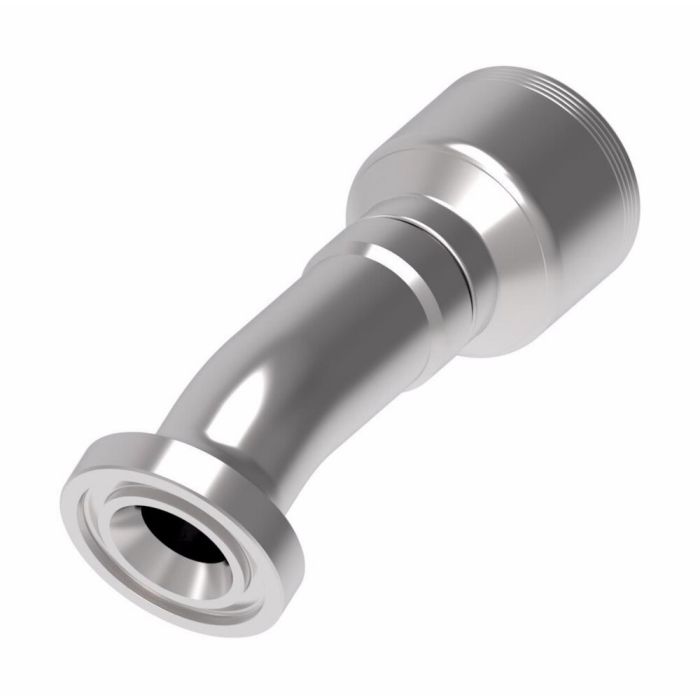

main product photo

Fitting Perm 4S Code62

Ask A Question

Description & Features

Designed for high-pressure hydraulic hose assemblies, this carbon steel SAE Code 62 flange fitting features a 22.5° elbow geometry and a -12 hose dash size, making it well suited for installations where straight connections are impractical. The flanged end pairs with a line, hose, or tube on the opposite end, providing versatile connectivity in demanding hydraulic circuits.

The Fitting Perm 4S Code62 is part of the Aeroquip 4S series and carries SAE J1176 certification. Dura-Kote plating provides strong corrosion resistance across varying environmental conditions. The system-engineered design supports extended hose assembly service life and consistent performance under pressure, reducing unplanned downtime in hydraulic systems. Manufactured at Van Wert, Ohio, this fitting is built to industrial-grade standards as a complete assembly.

SKU: 4S16FHD12

Supplier Part Number (MPN): 4S16FHD12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.38 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 62 Flange
Construction Style
Crimp
Cut-Off Factor
3.96 in
Dimension Standards
SAE J1176
Drop Dimensions
0.53 in
End Connection Torque
96 to 111 lb-ft
End Size 1
16
Finish
Dura-Kote™
Fitting Type
22-1/2 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hose Dash Size
12
Inside Diameter
0.56 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Rex B on Aug 5, 2025, 3:41 PM
Will this fitting hold up if it's constantly under high pressure in a hydraulic system?
Answer by: Customer Support on Aug 6, 2025, 8:43 PM
This Aeroquip 4S series fitting is designed to maintain consistent performance under pressure, which helps to reduce unplanned downtime in hydraulic systems.
