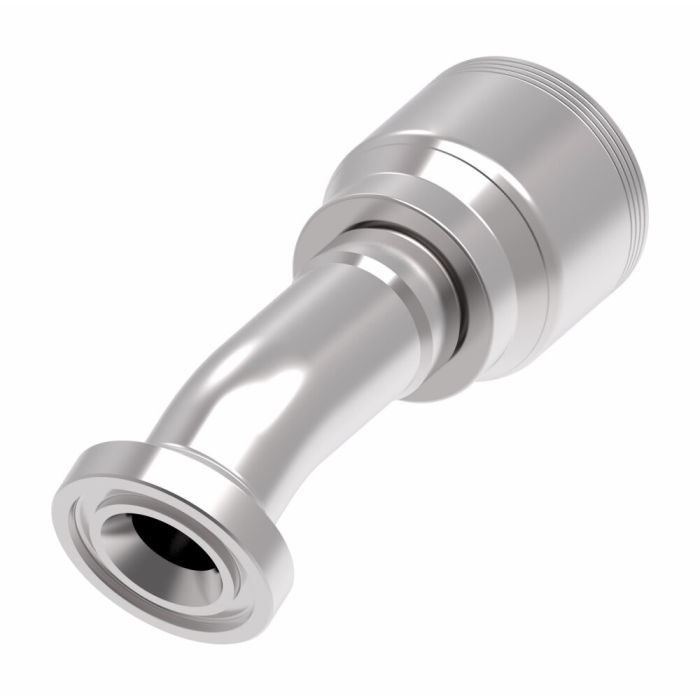

Split Flange Code 62 22°

Description & Features

The Eaton Aeroquip Split Flange Code 62 22° fitting is a robust and reliable choice for industrial applications requiring high-strength connections. Constructed from durable carbon steel, this fitting is designed to ensure long-term performance and withstand demanding conditions. The innovative design, coupled with Dura-Kote plating, provides superior corrosion resistance, thereby extending the lifespan of your hose assemblies.

This fitting features a flanged end type on one side and is compatible with lines, hoses, or tubes on the other, offering versatile integration into various hydraulic systems. Certified to meet SAE J1176 standards, it guarantees adherence to high-quality specifications for industrial use. With a hose dash size of -16, the Eaton Aeroquip fitting is engineered to enhance system performance and optimize uptime, making it an essential component for maintaining efficient use.

SKU: 4S16FHD16

Supplier Part Number (MPN): 4S16FHD16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.51 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 3.94 in	Dimension Standards SAE J1176	Drop Dimensions 0.53 in	End Connection Torque 96 to 111 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 22-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Howard B on Mar 23, 2026, 7:45 AM

So this fitting is good for 4-wire spiral hose, right? Just making sure before I order.

Answer by: Customer Support on Mar 25, 2026, 6:51 AM

Yes, this Eaton Aeroquip fitting is specifically designed for use with 4-wire spiral hose. It's part of their TTC fitting line.

Question by: Wayne P on Jul 4, 2025, 7:53 PM

what's the angle on this flange fitting, and is it a code 62?

Answer by: Customer Support on Jul 6, 2025, 9:43 AM

22.5 degrees and Code 62 confirmed. It's part of Eaton Aeroquip's 4S series, built for SAE Code 62 split flange connections, so if your system is spec'd for Code 62, you're in the right place. The -16 dash size tells you the hose end, so just make sure that lines up with your hose assembly before ordering.
