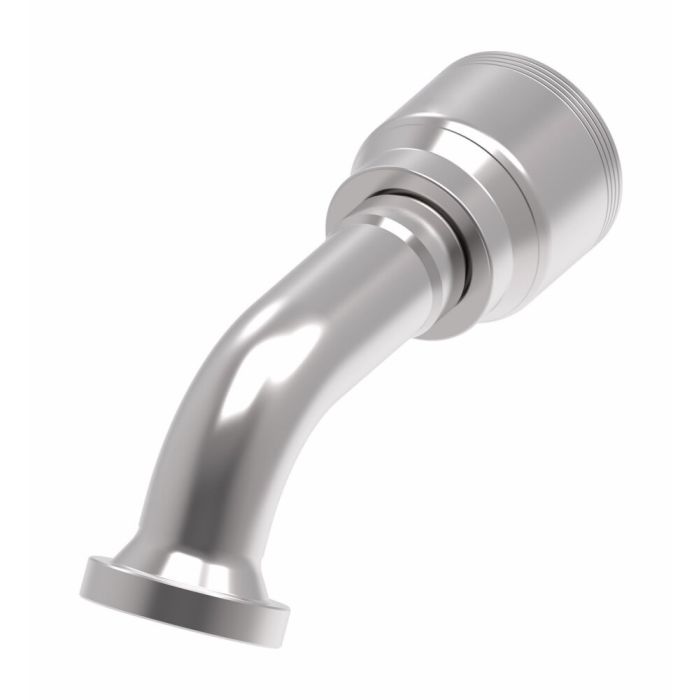

Split Flange Code 62 90°

Description & Features

Designed for high-pressure hydraulic hose assemblies, the Split Flange Code 62 90° is a carbon steel crimp fitting from Eaton Aeroquip's 4S Series, built to SAE J1176 certification standards. The 90-degree flange angle and -16 hose dash size make it well suited for tight routing configurations where straight fittings would be impractical.

The flanged end conforms to SAE Code 62 high-pressure specifications, while the hose end accommodates four-wire spiral hose construction. Dura-Kote plating provides corrosion resistance suited to demanding industrial environments. The fitting's system-engineered design is intended to extend hose assembly service life and support consistent uptime in hydraulic circuits.

SKU: 4S16FHG16

Supplier Part Number (MPN): 4S16FHG16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.16 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.59 in	Dimension Standards SAE J1176	Drop Dimensions 1.76 in	End Connection Torque 96 to 111 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 60 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Kirk R on Oct 27, 2025, 8:31 PM

does the Dura-Kote plating on this fitting hold up in wet or outdoor environments, or is that more of a shop-condition kind of thing?

Answer by: Customer Support on Oct 29, 2025, 7:04 AM

Dura-Kote is a corrosion-resistant plating specifically applied to give these fittings better staying power against moisture and environmental exposure than standard carbon steel fittings would offer on their own. It's not a coating thrown on as an afterthought. For wet or outdoor-adjacent conditions, that added protection is one of the reasons it's there.

Question by: Tammy M on Aug 21, 2025, 7:19 AM

What kind of plating does this fitting have, and is it any good for rust?

Answer by: Customer Support on Aug 22, 2025, 11:52 AM

Dura-Kote plating provides enhanced corrosion resistance, which helps extend the fitting's life.
