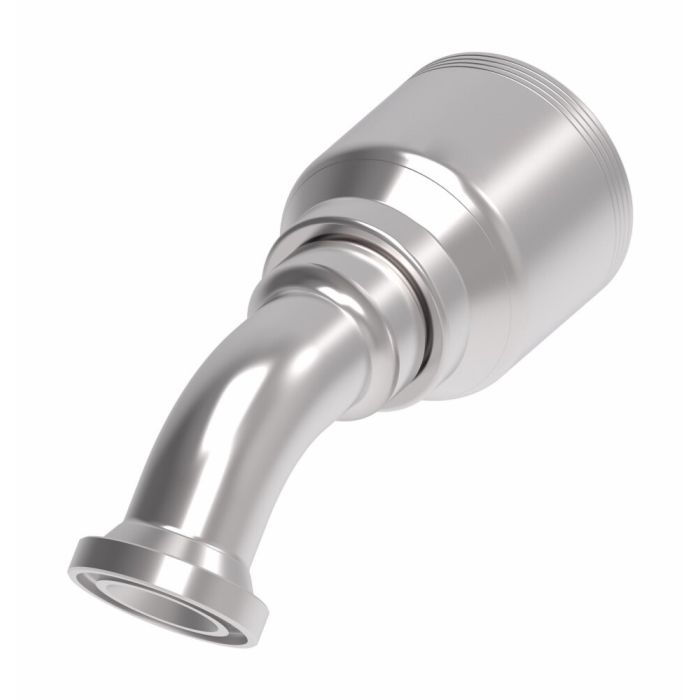

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

This Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting features a flanged end type and a line/hose/tube end type. Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended hose assembly life.

The 4S Series Crimp Hose Fitting SAE Code 61 Flange 45 Elbow is system engineered to deliver performance and maximum uptime. It is certified to SAE J1176 standards.

SKU: 4S16FLA20

Supplier Part Number (MPN): 4S16FLA20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.99 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.82 in	Dimension Standards SAE J1176	Dimensions 6.88 in L x 2.46 in W x 3.36 in H	Drop Dimensions 1.26 in	End Size 1 16	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.77 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Shane K on Oct 30, 2025, 10:46 AM

Can this fitting handle high pressure hydraulic systems, like the ones used on heavy equipment?

Answer by: Customer Support on Oct 31, 2025, 4:17 PM

Designed for performance and maximum uptime, this fitting is system engineered to handle the demands of hydraulic systems, especially where hose assembly life is critical.
