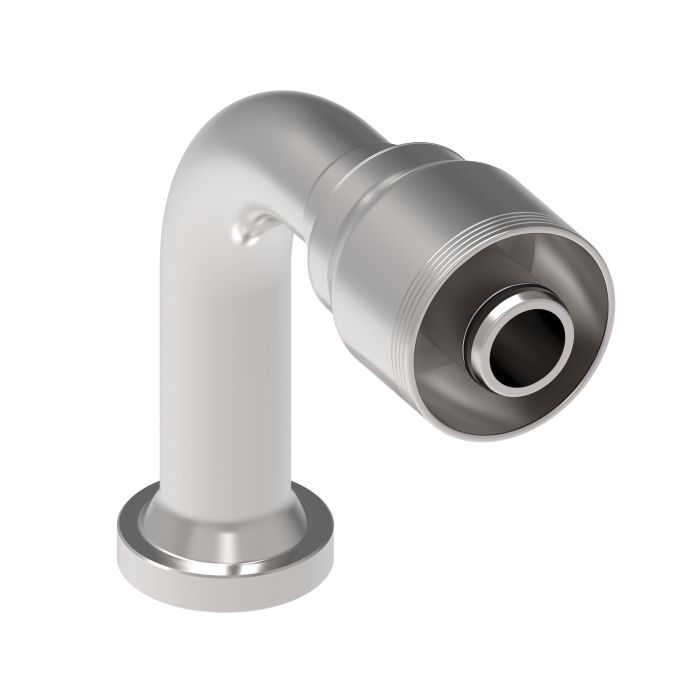

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is engineered to extend the life of hose assemblies with an innovative design that maximizes uptime and performance. It boasts Dura-Kote plating offering exceptional corrosion resistance for longer durability.

Manufactured in compliance with SAE J1176 standards this fitting is constructed from high-quality carbon steel ensuring robust and reliable usage. The fitting features a flanged end type and is suitable for line hose or tube applications.

Components such as batteries calibration cases switch connectors or thread sealants are not included making this fitting a streamlined and focused solution for specific industrial needs. The product width is measured at 2.08 inches with a drop dimension of 4.57 inches.

Certifications: SAE J1176

End Type 1: Flanged

End Type 2: Line/Hose/Tube

Supplier Part Number: 4S16FLB16.116

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.96 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.39 in	Dimension Standards SAE J1176	Dimensions 5.834 in L x 2.08 in W x 5.61 in H	Drop Dimensions 4.57 in	End Size 1 16	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Todd W on Dec 6, 2025, 9:53 PM

what kind of corrosion protection does this fitting have on it? running equipment in some pretty rough conditions and need something that'll hold up

Answer by: Customer Support on Dec 8, 2025, 6:26 AM

Dura-Kote plating covers the exterior, which is built specifically to resist corrosion over the long haul. Combined with the carbon steel construction, it gives you a fitting that holds up well in demanding environments without breaking down prematurely. That plating is one of the main reasons this particular fitting gets specified for applications where durability is a real concern.

Question by: Steve P on Aug 5, 2025, 9:18 PM

So, this fitting... it's just the fitting itself, right? No extra parts come with it?

Answer by: Customer Support on Aug 7, 2025, 6:45 AM

That's correct. This fitting is a streamlined solution, so components like batteries, calibration cases, switches, connectors, or thread sealants are not included.
