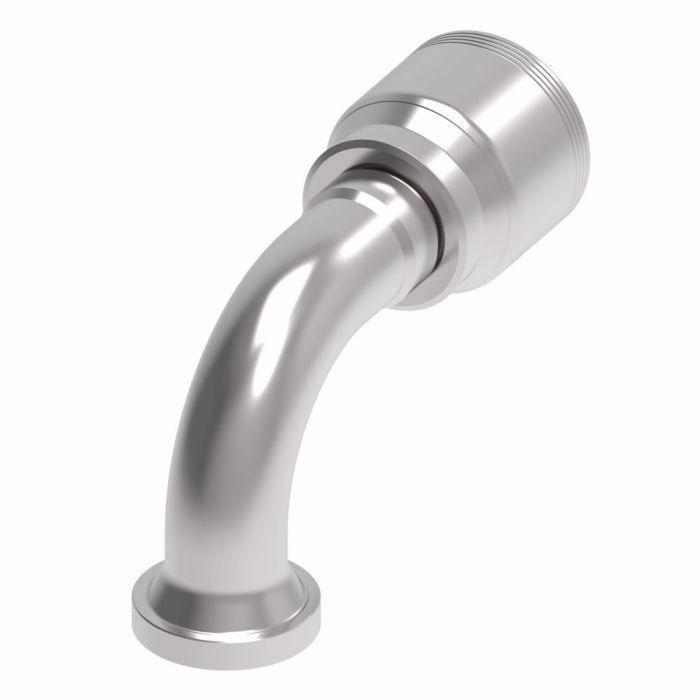

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting exemplifies advanced design to ensure outstanding performance and prolonged service life. Featuring a robust carbon steel construction, this fitting is engineered to withstand rigorous conditions.

The Dura-Kote plating offers superior corrosion resistance, enhancing the longevity of the hose assembly. Designed with an innovative approach, this fitting provides maximum uptime, reducing maintenance frequency.

Certified to SAE J1176 standards, this fitting stands out for its reliability in demanding environments. With a 90-degree elbow, flanged end type, and line/hose/tube connection, it is optimized for efficient fluid conveyance applications.

Supplier Part Number: 4S16FLB16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.96 in	Compatible Hose ID 1 in	Compatible Tube OD 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.39 in	Dimension Standards SAE J1176	Dimensions 5.84 in L x 2.08 in W x 3.84 in H	Drop Dimensions 2.8 in	End Size 1 16	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With EC525, EC600, EC810, FC254, FC273, FC500, FC636, FC736, GH493, GH506 and GH755 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 1 in

Product Questions & Answers (4)

Question by: Dwight C on May 3, 2025, 7:35 AM

Will this here fitting hold up to some serious use? I'm running equipment pretty much all day, every day.

Answer by: Customer Support on May 5, 2025, 6:21 AM

Designed to extend hose assembly life, this fitting features Dura-Kote plating for superior corrosion resistance, contributing to its durability in demanding applications.

Question by: Patty R on Oct 23, 2025, 9:33 PM

Will this fitting hold up to some serious corrosion? I'm using it in a pretty rough environment.

Answer by: Customer Support on Oct 25, 2025, 7:20 AM

Dura-Kote plating is included, which delivers enhanced corrosion resistance and extends the life of the fitting.

Question by: Hugh A on Sep 26, 2025, 1:20 PM

got a -16 four-wire spiral hose, is this the right TTC fitting for it?

Answer by: Customer Support on Sep 28, 2025, 10:02 AM

The key callout is the hose dash size. This fitting is built for a -16 hose in a 4-wire spiral TTC style.

Question by: Warren L on Apr 17, 2025, 2:41 PM

Got a -16 hose I'm trying to route around a tight corner, does this fitting have the angle built in, or is it straight?

Answer by: Customer Support on Apr 18, 2025, 3:00 PM

The 90-degree elbow configuration is built right into this fitting, so you get that corner without needing a separate adapter or a bent hose run. The flanged end pairs with a line, hose, or tube connection on the other side, making it a solid choice for installations where space is limited and you need a clean, controlled fluid path.
