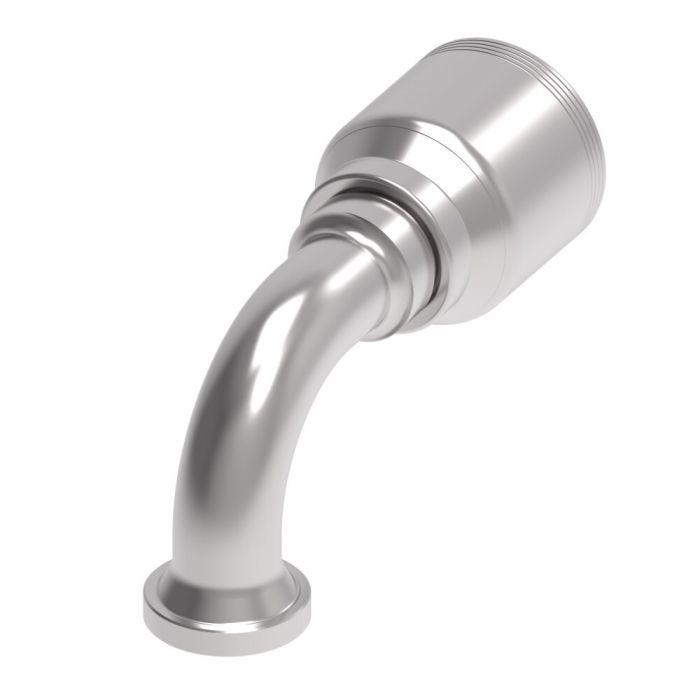

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is engineered for durability and optimal performance in demanding hydraulic applications. Constructed from carbon steel, this fitting ensures strength and resilience in high-pressure environments. The innovative design, featuring Dura-Kote plating, offers superior corrosion resistance, extending the life of the hose assembly and maintaining system integrity.

This fitting is compliant with SAE J1176 standards, ensuring reliability and compatibility within standardized systems. Designed with a 90-degree flange elbow, it accommodates a range of hydraulic systems where space constraints are a consideration. The fitting supports hose dash size -20, making it versatile for various industrial applications.

SKU: 4S16FLB20

Supplier Part Number (MPN): 4S16FLB20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.79 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.62 in	Dimension Standards SAE J1176	Dimensions 6.67 in L x 2.46 in W x 4.03 in H	Drop Dimensions 2.8 in	End Size 1 16	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.77 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Scott C on Jul 19, 2025, 9:42 AM

If I'm usin' this in a tight spot, what's the elbow angle on that flange?

Answer by: Customer Support on Jul 20, 2025, 3:16 PM

The 90-degree flange elbow is made to help with hydraulic systems where space is a bit of a concern.
