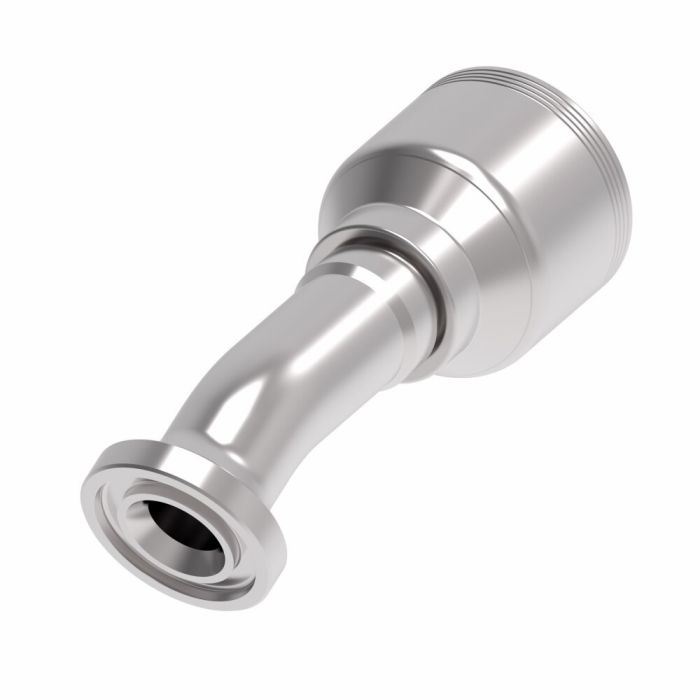

Engineered by Danfoss Power Solutions the Split Flange Code 61 22.5 is a high-performance component with advanced Dura-Kote plating. This feature ensures optimal corrosion resistance thereby extending the longevity of hose assemblies. It adheres to SAE J1176 standards providing reliability in demanding applications.
Designed specifically for hydraulic systems requiring robust and durable connections this fitting is crafted from high-quality carbon steel. Its innovative design aims to maximize uptime and enhance overall system functionality without the need for adjustable ends or sealants.
This part is characterized by flanged and hose end types specifically designed for a -12 hose dash size offering superior adaptability and ease of installation. With a drop dimension of 0.5300 and a width of 1.84 inches it ensures a precise fit and reliable performance in various industrial settings.
Supplier Part Number: 4S16FLD12
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051495, Alternate Part Number MINO-00015X01125
Certifications
SAE J1176
Drop Dimension
0.53
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-12
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.84
Sub Brand
None
Supplier Part Number
4S16FLD12
Product Weight
1.16 lbs
Product Questions & Answers (2)
Question by: Marvin W on Feb 22, 2026, 10:30 AM
does this fitting work without any sealant or do I need to tape the threads before putting it together
Answer by: Customer Support on Feb 24, 2026, 8:10 AM
No thread sealant or tape needed on this one. The split flange design uses a flanged connection rather than threaded sealing, so it mates up clean without any extra sealing material. That's part of what makes it straightforward to install on a hydraulic system.
Question by: Jerry H on Jul 7, 2025, 4:02 PM
Will this flange fitting work with standard hydraulic hoses or is it for something special?
Answer by: Customer Support on Jul 9, 2025, 11:58 AM
This split flange fitting is made for standard hydraulic systems using a -12 hose dash size.
