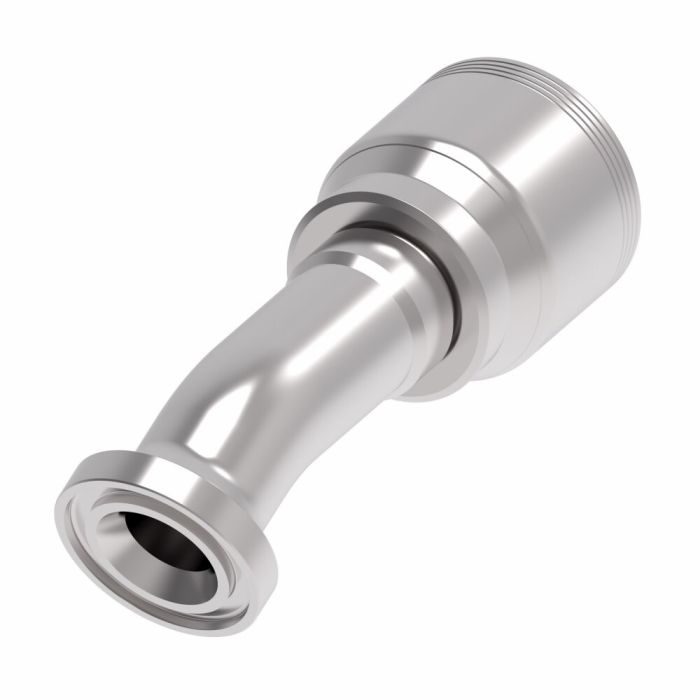

Split Flange Code 61 22.5°

Description & Features

The Split Flange Code 61 22.5 fitting engineered by Danfoss Power Solutions Aeroquip is a critical component for industrial applications where high performance and durability are required. This flanged-to-line/hose/tube fitting is constructed from carbon steel ensuring long-lasting reliability.

It features Dura-Kote plating which provides exceptional corrosion resistance enhancing the longevity of the fitting in harsh environments.

Designed to meet SAE J1176 certification standards this fitting guarantees compatibility and safety.

With system-engineered features this fitting is crafted to extend hose assembly life reducing maintenance needs and enhancing uptime. Ideal for a range of demanding industrial settings the Split Flange Code 61 22.5 fitting is a robust solution tailored for performance and efficiency.

MPN: EAR99

Supplier Part Number: 4S16FLD16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5-1/2 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.94 in	Dimension Standards SAE J1176	Dimensions 5.9 in L x 2.08 in W x 2.45 in H	Drop Dimensions 0.53 in	End Size 1 16	Finish Zinc-Plated	Fitting Type 22-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Scott J on Mar 13, 2026, 6:23 AM

fitting says 22.5 degree angle, does that mean it ain't gonna sit flush like a standard straight flange would?

Answer by: Customer Support on Mar 14, 2026, 9:52 AM
