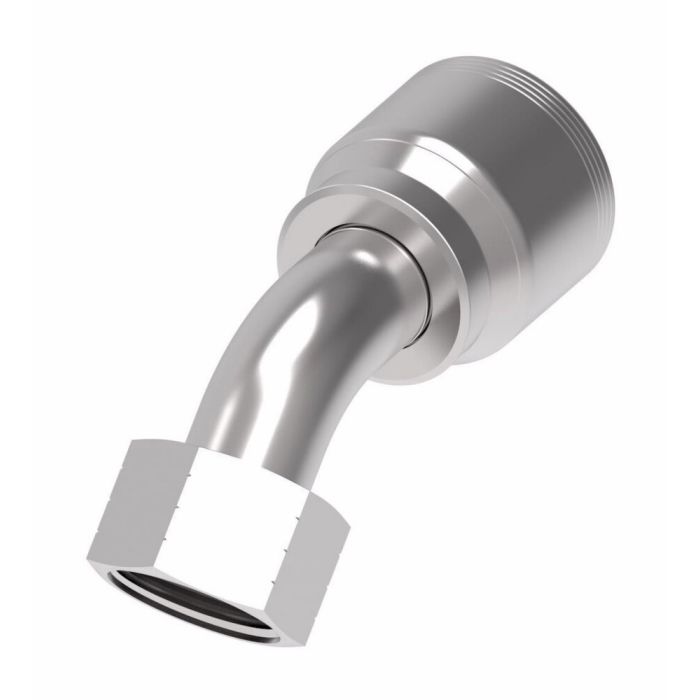

Designed for permanent crimp hose assemblies, this carbon steel 45-degree elbow fitting features a female ORS swivel end and is sized for -16 hose dash size applications. The swivel configuration simplifies routing and assembly alignment in tight or angular installations. Dura-Kote plating provides corrosion resistance suited to demanding hydraulic environments, while the system-engineered design supports extended hose assembly service life.
The Ftng (perm), 4-sprl carries SAE J1176 certification and is manufactured under the Aeroquip brand. With a drop dimension of 1.10 and a package weight of 2.39 lb, this fitting assembly is built for reliable performance in industrial hydraulic systems requiring a secure ORS swivel connection at a 45-degree angle.
SKU: 4S16FRA16
Supplier Part Number (MPN): 4S16FRA16
|
Alternate Part Numbers
MINO-00015X01136
|
Certifications
SAE J1176
|
Drop Dimension
1.10
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
ORS
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
2.08
|
Sub Brand
None
|
Supplier Part Number
4S16FRA16
|
Product Weight
1.40 lbs
|
