Ftng (perm), 4-sprl,

Description & Features

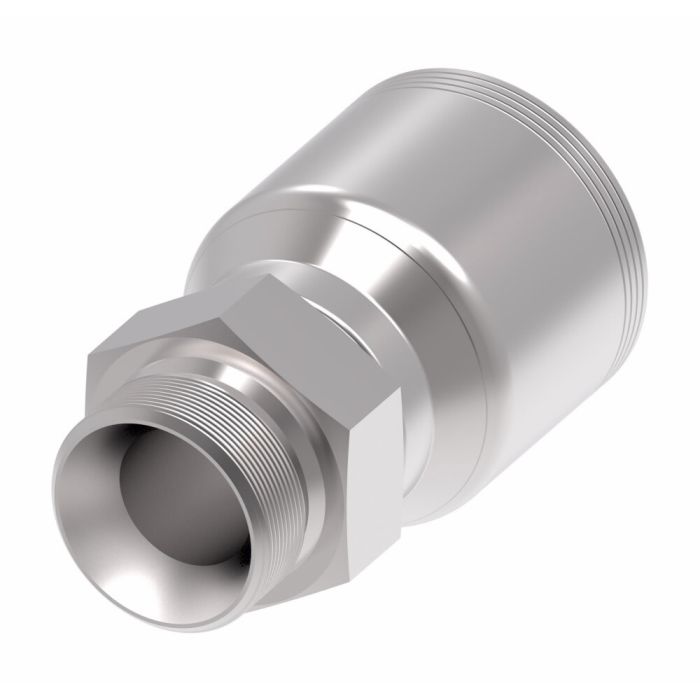

This Ftng (perm), 4-sprl, is a Danfoss / Eaton 4S Series crimp hose fitting with a male parallel rigid BSP end. Constructed of carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended hose assembly life. Its innovative design ensures reliable performance and maximum uptime in demanding hydraulic applications.

This fitting assembly conforms to SAE J1176 standards and is suitable for -20 hose dash sizes. The male end features a BSPP connection.

SKU: 4S20BP20

Supplier Part Number (MPN): 4S20BP20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.32 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Hose, Male BSP	Connection Type 1 Hose	Connection Type 2 Male BSPP 60 deg Cone Seat	Construction Style Crimp	Cut-Off Factor 2.15 in	Dimension Standards SAE J1176	Dimensions 4.4 in L x 2.46 in W x 2.46 in H	End Gender 1 Male	End Size 1 20	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.97 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size G1-1/4

Product Questions & Answers (1)

Question by: Dwayne M on Mar 28, 2026, 9:59 PM

What size hose does this fitting work with? Just wanna make sure I'm gettin' the right thing.

Answer by: Customer Support on Mar 30, 2026, 9:25 PM

This fitting assembly is designed to work with -20 hose dash sizes.
