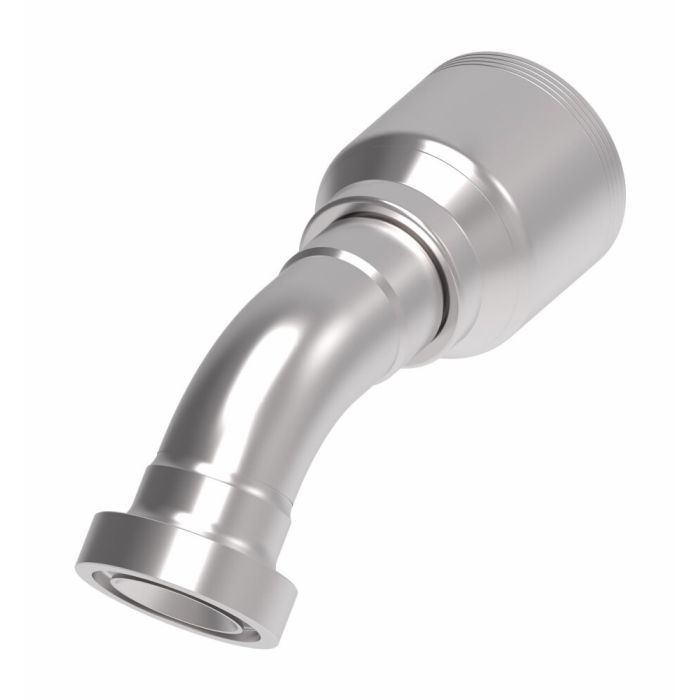

Cat Flange 45°

Description & Features

Danfoss Power Solutions presents a robust Cat Flange 45 designed to meet high standards and enhance system longevity. Engineered with superior Dura-Kote plating this hose fitting offers exceptional resistance to corrosion ensuring reliability even in demanding environments.

Featuring a 45 flange and constructed from durable carbon steel this component is tailored to extend the life of hose assemblies. The innovative design further optimizes performance and minimizes downtime.

Certified as per SAE J1176 this product ensures adherence to stringent industry standards making it a reliable choice for professionals seeking quality and durability in their equipment. The drop dimension of 1.6500 and a hose dash size of -20 contribute to its versatile application providing a secure fit for various systems.

MPN: EAR99

Supplier Part Number: 4S20CTA20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.67 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 4-1/2 in	Dimension Standards SAE J1176	Dimensions 7.75 in L x 2.46 in W x 3.93 in H	Drop Dimensions 1.65 in	End Size 1 20	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Pete J on Sep 30, 2025, 9:32 PM

trying to replace a bent fitting on a hose, is this one the -20 dash size with a 45 degree flange end?

Answer by: Customer Support on Oct 2, 2025, 9:06 AM

It is a -20 hose dash fitting with a 45 degree flanged end, and it is a fitting assembly meant to connect a flanged end to a line, hose, or tube side.
