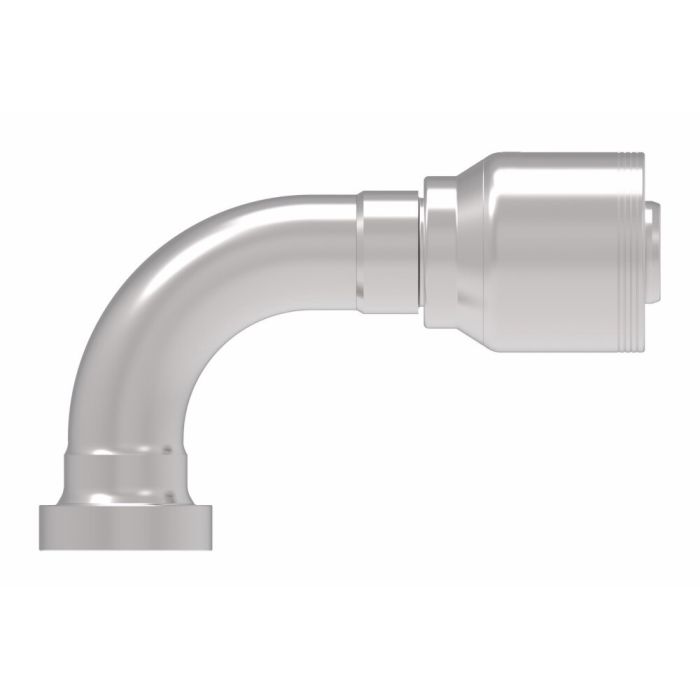

Designed with Dura-Kote plating the Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting ensures superior corrosion resistance making it suitable for demanding industrial environments. This product adheres to SAE J1176 standards providing reliability and performance. The innovative design is engineered to maximize uptime and extend the life of hose assemblies.
Constructed from durable carbon steel this fitting features a CAT Flange 90 Elbow configuration compatible with -20 hose dash sizes. The component is classified under ECCN EAR99 and falls within the Hose Fittings category.
The product dimensions include a drop dimension of 3.6600 inches and a width of 4.46 inches ensuring a precise fit for specified applications.
Certifications: SAE J1176
Supplier Part Number: 4S20CTB20
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051524, Alternate Part Number MINO-00015X01153, Alternate Part Number MINO-00925F19957
Certifications
SAE J1176
Drop Dimension
3.66
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-20
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
4.46
Sub Brand
None
Supplier Part Number
4S20CTB20
Product Weight
2.97 lbs
Product Questions & Answers (2)
Question by: Shawn W on Oct 12, 2025, 6:09 AM
Is this thing gonna hold up in a factory setting where it's constantly exposed to hydraulic fluid and grime?
Answer by: Customer Support on Oct 14, 2025, 6:05 AM
Dura-Kote plating provides superior corrosion resistance, so it should hold up well in demanding industrial environments.
Question by: Warren J on Dec 3, 2025, 6:26 PM
fitting's got a CAT flange 90 elbow config listed, does that mean it's only gonna work on caterpillar flange ports or is it more general than that?
Answer by: Customer Support on Dec 5, 2025, 7:44 AM
CAT flange refers to the flange face style and bolt pattern used on that port configuration, so yes, it needs to match up with a CAT-style flange port on your equipment or manifold. This is a flanged end on one side and a hose/line connection on the other, sized for -20 hose dash size. As long as your port matches that flange standard and you're running -20 hose, you're in the right territory.
