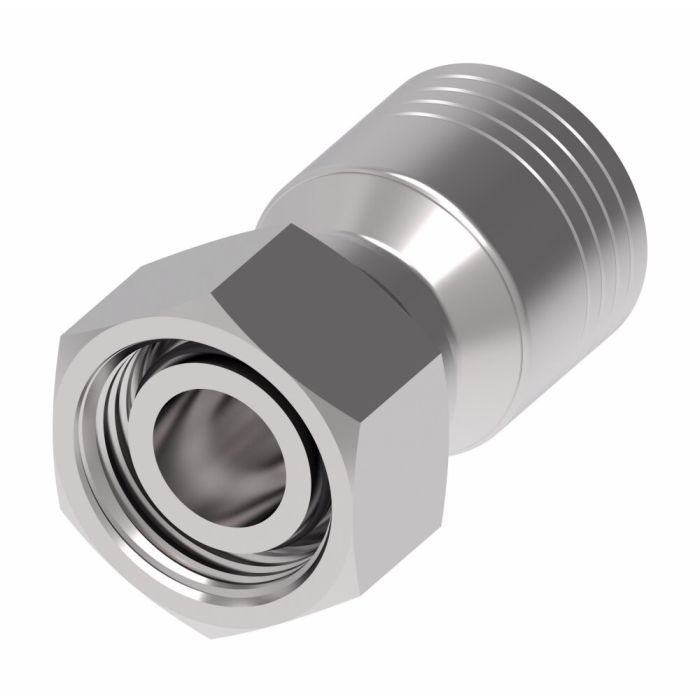

main product photo

Ftng (perm), 4-sprl

Ask A Question

Description & Features

This Aeroquip fitting assembly is designed for permanent attachment to 4-spiral hoses. The carbon steel construction ensures durability in demanding hydraulic applications. Dura-Kote plating offers superior corrosion resistance, extending the fitting's service life.

Engineered for performance and maximum uptime, this female swivel fitting features a Metric end and a Line/Hose/Tube end. It conforms to SAE J1176 standards. This -8 size fitting is part of a system designed to extend hose assembly life.

SKU: 4S20DL8

Supplier Part Number (MPN): 4S20DL8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.34 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1/2 in
Connection Size 2
1-1/4 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOL DIN 24 deg Seat Swivel
Construction Style
Crimp
Cut-Off Factor
1.27 in
Dimension Standards
SAE J1176
Dimensions
2.34 in L
End Gender 1
Female
End Size 1
20
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M30x2

Product Questions & Answers (1)

Question by: Melvin S on Jan 30, 2026, 9:34 AM
Will this fitting hold up if I'm running hydraulic fluid through it pretty much constantly?
Answer by: Customer Support on Feb 1, 2026, 6:53 AM
Dura-Kote plating on this fitting gives it good corrosion resistance, which should help extend its service life even with regular use of hydraulic fluid.
