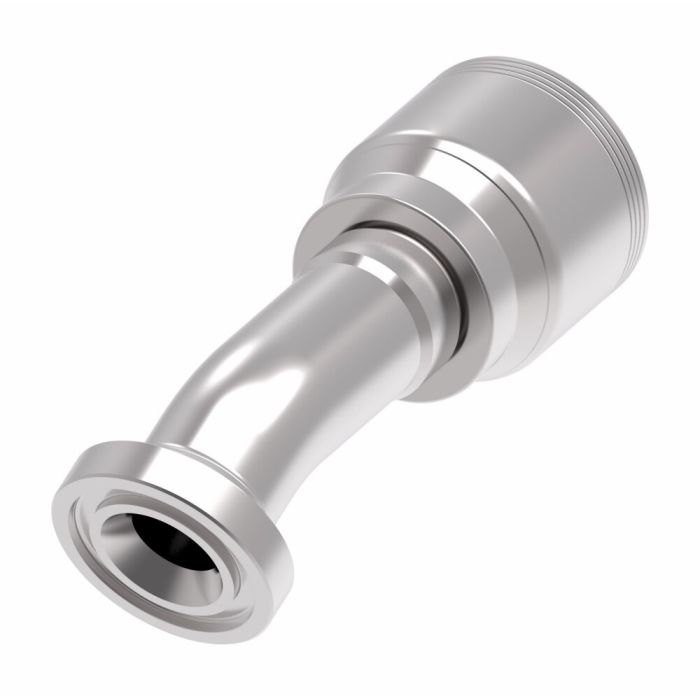

Designed for high-pressure hydraulic hose assemblies, the Split Flange Code 62 22° is a -16 dash size crimp fitting from Eaton Aeroquip, built to SAE J1176 standards. The 22° elbow configuration suits installations where straight connections are impractical, with a flanged end on one side and a hose/line end on the other.
Constructed from carbon steel and finished with Dura-Kote plating, this fitting delivers reliable corrosion resistance in demanding industrial environments. The 4S Series design is system-engineered to extend hose assembly service life and support consistent uptime across heavy-duty hydraulic circuits. At approximately 3 lbs, the fitting is substantial in construction, reflecting its use in 4-wire spiral hose applications.
SKU: 4S20FHD16
Supplier Part Number (MPN): 4S20FHD16
|
Alternate Part Numbers
MINO-00925X11051
|
Certifications
SAE J1176
|
Drop Dimension
0.64
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.13
|
Sub Brand
None
|
Supplier Part Number
4S20FHD16
|
Product Weight
2.05 lbs
|
