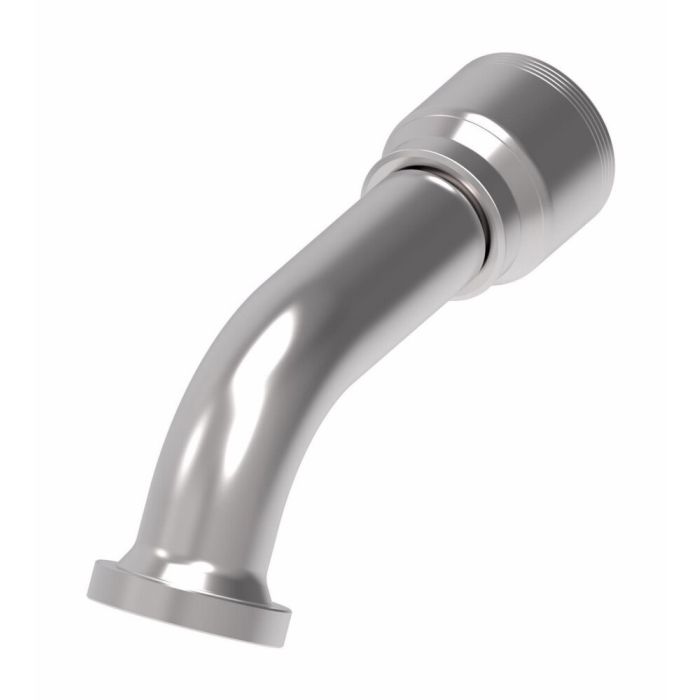

main product photo

Ftng (perm), 4-sprl

Ask A Question

Description & Features

Designed for SAE Code 62 flange connections, this carbon steel crimp hose fitting from Aeroquip connects a -16 dash size hose to a flanged port via a 60-degree elbow configuration. The 4-spiral construction is suited to high-demand hydraulic circuits where hose assembly durability and connection integrity are priorities.

The fitting carries Dura-Kote plating for corrosion resistance and is built as a permanent assembly fitting, the Ftng (perm), 4-sprl, engineered to extend hose assembly service life in demanding industrial hydraulic applications. Certified to SAE J1176, it is manufactured at the Van Wert, Ohio facility and weighs approximately 3.49 lb. The flanged end type pairs with a line/hose/tube end, making it compatible with standard SAE Code 62 flange system layouts.

SKU: 4S20FHG16

Supplier Part Number (MPN): 4S20FHG16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
7.22 in
Compatible Hose ID
1 in
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 62 Flange
Construction Style
Crimp
Cut-Off Factor
5.65 in
Dimension Standards
SAE J1176
Dimensions
7.22 in L x 2.084 in W x 2.2 in H
Drop Dimensions
2.2 in
End Size 1
20
Finish
Dura-Kote™
Fitting Type
60 deg Elbow
Hose Dash Size
20
Inside Diameter
3/4 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
EPDM
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Jerry F on May 23, 2025, 10:17 AM
If I'm hooking this up myself, what kind of hose is it meant to work with? Just want to make sure I get the right one.
Answer by: Customer Support on May 24, 2025, 3:40 PM
This fitting is designed for use with a -16 dash size hose, which connects to a flanged port using a 60-degree elbow.
