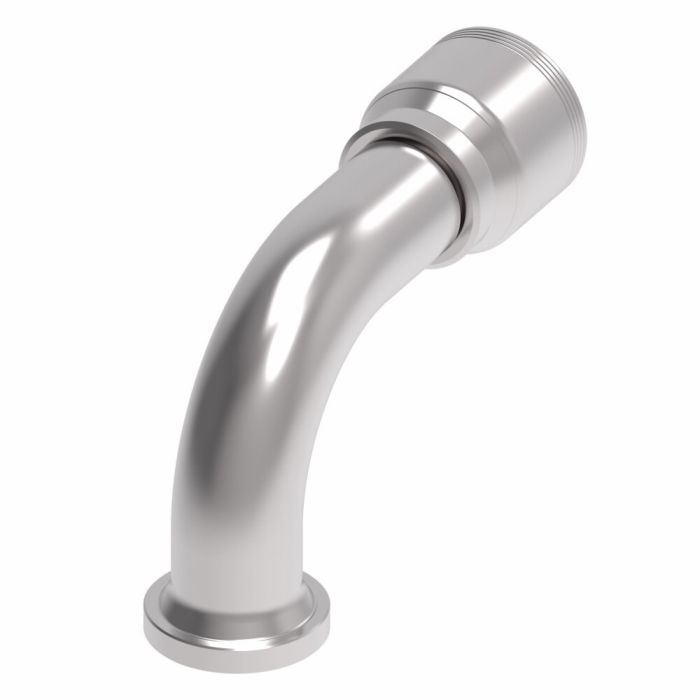

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is engineered for exceptional performance and durability. Featuring Dura-Kote plating this fitting ensures superior corrosion resistance extending the life of your equipment.
Built for maximum uptime its innovative design is tailored to deliver consistent results in demanding industrial environments. The fitting adheres to SAE J1176 certification highlighting its compliance with industry standards.
This flanged-end fitting is compatible with lines hoses and tubes and is designed to enhance system reliability. Made from robust carbon steel it measures 2.08 inches in width and has a drop dimension of 3.5000 inches ensuring a versatile application for various industrial needs.
No additional adjustment or calibration is required streamlining installation and maintenance processes. The 4S20FLB16 supplier part number denotes its specification as a premium solution for hose assemblies.
ECCN: EAR99
Supplier Part Number: 4S20FLB16
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1MZ49, Alternate Part Number MI-08039119, Alternate Part Number MINO-00015X01003
Certifications
SAE J1176
Drop Dimension
3.50
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.08
Sub Brand
None
Supplier Part Number
4S20FLB16
Product Weight
2.27 lbs
Product Questions & Answers (2)
Question by: Hubert R on Jan 28, 2026, 6:10 PM
got a -16 hose on a machine, would this 4S20FLB16 be the right dash size for it?
Answer by: Customer Support on Jan 29, 2026, 8:12 PM
The hose dash size on this fitting is -16, and it is a 4-wire spiral TTC fitting assembly. The ends are listed as Flanged on one side and Line/Hose/Tube on the other, so it is meant to tie into a flanged connection and a line, hose, or tube connection.
Question by: Rusty G on May 25, 2025, 4:48 PM
does this fitting need any kind of special prep before install, or is it pretty much ready to go straight out of the box?
Answer by: Customer Support on May 27, 2025, 6:15 AM
No calibration or adjustment is needed before putting it in service. The 4S20FLB16 goes in as-is, which keeps installation straightforward and cuts down on time spent getting a line back up and running.
