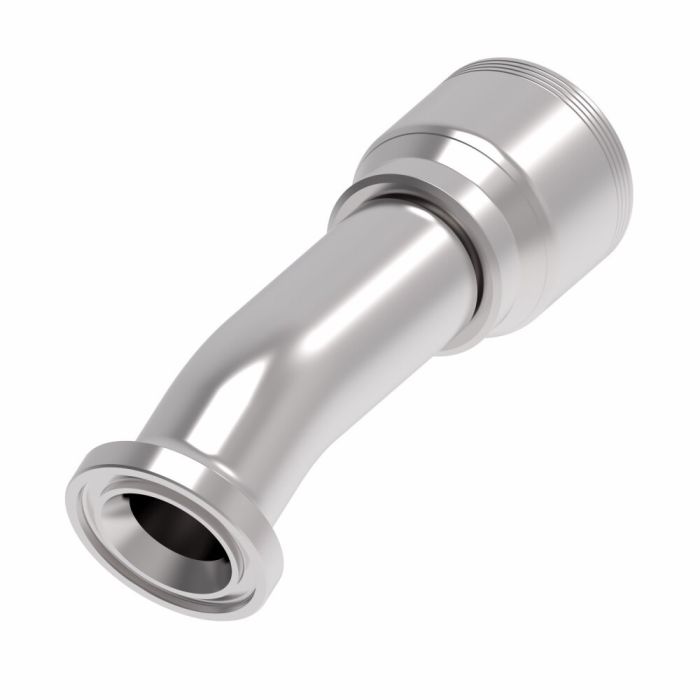

Split Flange Code 61 22.5°

Description & Features

This Eaton Aeroquip fitting assembly features a split flange and a 22.5° elbow. Designed for robust hydraulic applications, this fitting is made from carbon steel for durability and strength.

The fitting is engineered to extend hose assembly life and deliver reliable performance. It includes Dura-Kote plating, offering superior corrosion resistance. This Split Flange Code 61 22.5° fitting is certified to SAE J1176 standards.

SKU: 4S20FLD16

Supplier Part Number (MPN): 4S20FLD16

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015X01183	Certifications SAE J1176	Drop Dimension 0.64	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.08	Sub Brand None	Supplier Part Number 4S20FLD16	Product Weight 1.86 lbs

Product Questions & Answers (2)

Question by: Shawn B on Sep 21, 2025, 11:10 AM

Will this fitting work with standard SAE Code 61 flanges? Just want to make sure before I order a bunch.

Answer by: Customer Support on Sep 22, 2025, 9:03 PM

This Eaton Aeroquip fitting is indeed designed to meet SAE J1176 standards for Code 61 flanges, ensuring proper fit and performance.

Question by: Tony W on Jan 4, 2026, 2:26 PM

does this fitting work with 4-wire spiral hose on -16 dash size applications?

Answer by: Customer Support on Jan 6, 2026, 6:11 AM

For -16 hose dash size with 4-wire spiral hose, this is exactly what the 4S20FLD16 is built around. It's part of Eaton Aeroquip's 4S series crimp fittings, so the crimp end is matched to that hose construction and that dash size specifically. The flange end connects via SAE Code 61 split flange, and the 22.5 degree elbow gives you a modest angular offset when a straight connection won't clear your routing.
