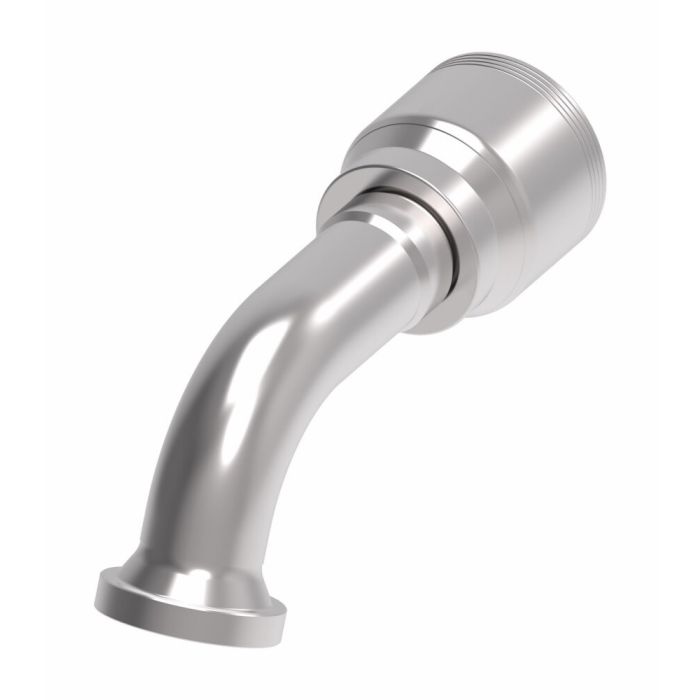

Designed for demanding hydraulic circuits, this carbon steel crimp hose fitting from Eaton Aeroquip provides a 67.5° elbow configuration with a split flange connection conforming to SAE Code 61 standards. The -16 hose dash size and flanged end type make it well suited for high-pressure hose assembly applications where angular routing is required within tight installation envelopes.
The Split Flange Code 61 67.5° carries SAE J1176 certification and features Dura-Kote plating, which provides solid corrosion resistance in harsh industrial environments. Engineered as part of Eaton Aeroquip's 4S Series, the fitting is built to extend hose assembly service life and support consistent system uptime. The assembly weighs 3.26 lb and has a product width of 2.08 inches, with a drop dimension of 2.54 inches.
SKU: 4S20FLE16
Supplier Part Number (MPN): 4S20FLE16
|
Alternate Part Numbers
MINO-00015X01185
|
Certifications
SAE J1176
|
Drop Dimension
2.54
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.08
|
Sub Brand
None
|
Supplier Part Number
4S20FLE16
|
Product Weight
2.26 lbs
|
