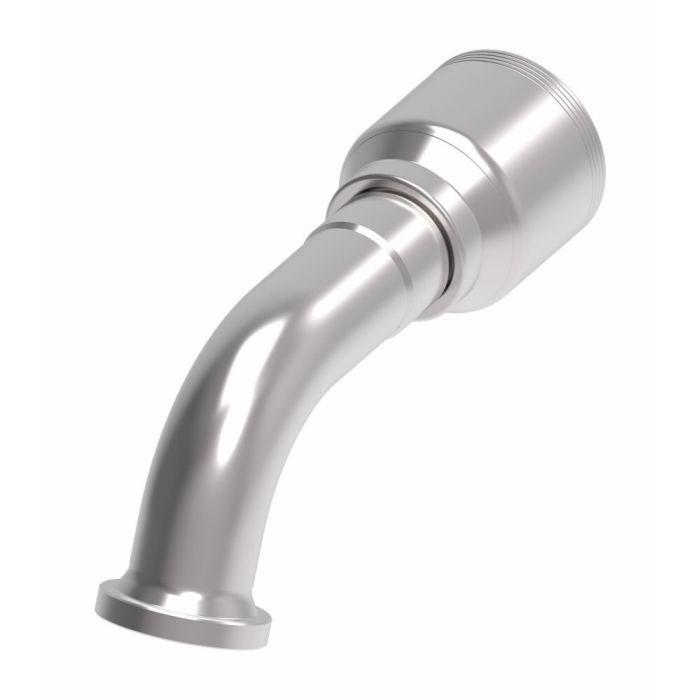

Split Flange Code 61 67.5°

Description & Features

The Eaton Aeroquip Split Flange Code 61 67.5° fitting assembly is crafted from durable carbon steel, ensuring robust performance in demanding hydraulic applications. Designed for compatibility with line, hose, or tube end types, this fitting provides a secure and reliable connection. The innovative design incorporates Dura-Kote plating, offering superior corrosion resistance and enhanced longevity, making it an ideal choice for extending hose assembly life.

Certified to SAE J1176 standards, this fitting features a -20 hose dash size and a drop dimension of 2.5400, engineered to meet rigorous industrial requirements. The fitting's system-engineered approach guarantees maximum uptime and efficiency in operation. With a package weight of 3.74 lb and a product width of 2.46, the Eaton Aeroquip fitting is both practical and efficient for various industrial settings.

SKU: 4S20FLE20

Supplier Part Number (MPN): 4S20FLE20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.55 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 5.39 in	Dimension Standards SAE J1176	Dimensions 8.55 in L x 2.46 in W x 2.37 in H	Drop Dimensions 2.54 in	End Size 1 20	Finish Zinc-Plated	Fitting Type 67-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Gary T on Jun 28, 2025, 4:54 PM

got a 4-spiral hose assembly running SAE Code 61 flanged connections and need a 67.5 elbow to clear some frame bracing. this the right fitting for that setup?

Answer by: Customer Support on Jun 29, 2025, 6:32 PM

For a 4-spiral hose with Code 61 flange ends, yes, this is built exactly for that application. It's an Eaton Aeroquip 4S series crimp fitting in a -20 hose dash size, so confirm your hose size lines up with that. The 67.5 degree elbow angle gives you that offset routing without having to force a 90 or live with a straight fitting fighting your layout. Carbon steel construction with Dura-Kote plating keeps corrosion from becoming a problem in tight, hard-to-service spots.

Question by: Curt S on Apr 5, 2025, 9:49 AM

Does this fitting hold up well in situations where there's a lot of vibration?

Answer by: Customer Support on Apr 6, 2025, 1:44 PM

Designed with performance and uptime in mind, this fitting should provide extended hose assembly life even in demanding conditions.
