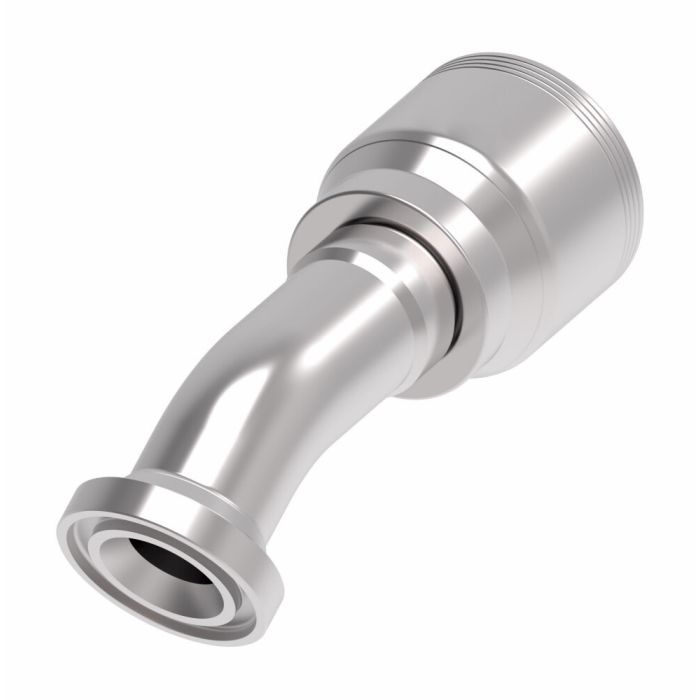

Split Flange Code 61 30°

Description & Features

Designed for SAE Code 61 flange connections, this carbon steel crimp hose fitting from Eaton Aeroquip incorporates a 30-degree elbow geometry suited to high-pressure hydraulic hose assemblies where angular routing is required. The Split Flange Code 61 30Â° accommodates a -16 hose dash size and is built to SAE J1176 certification standards, making it a reliable choice for demanding fluid power systems.

Dura-Kote plating provides strong corrosion resistance across the fitting body, supporting longevity in harsh service environments. The fitting is part of Eaton Aeroquip's 4S series, which is engineered to extend hose assembly life through a system-level approach to connection performance. Weighing 2.87 lb.

SKU: 4S20FLF16

Supplier Part Number (MPN): 4S20FLF16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.23 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 4.669 in	Dimension Standards SAE J1176	Dimensions 6.53 in L x 2.084 in W x 3.33 in H	Drop Dimensions 0.92 in	End Size 1 20	Finish Zinc-Plated	Fitting Type 30 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code B	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Joyce M on Jun 24, 2025, 10:32 AM

What size hose does this fitting work with? Gotta make sure I order the right one.

Answer by: Customer Support on Jun 26, 2025, 7:32 AM

It's designed for a -16 hose dash size, which should match the hose you're planning to use it with.
