Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

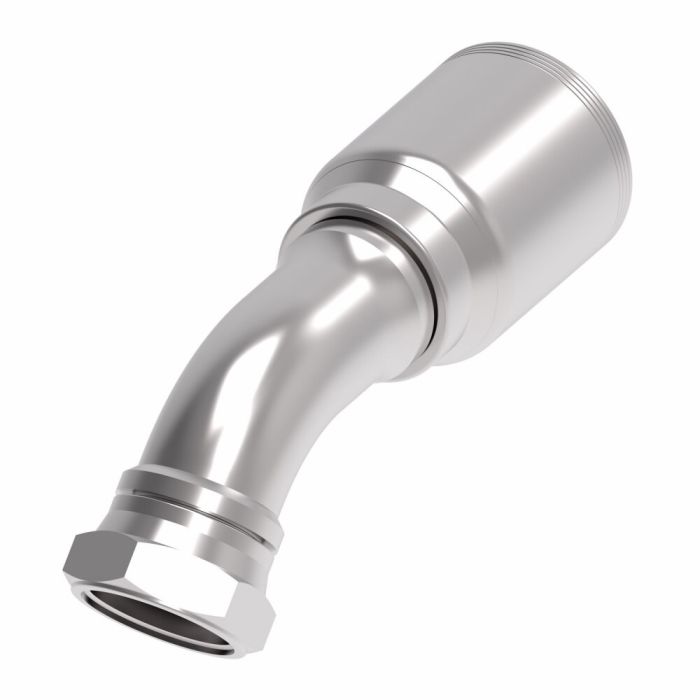

This Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is a female BSPP swivel 60 cone 45 elbow designed for hydraulic applications.

Constructed from carbon steel, it features Dura-Kote plating for superior corrosion resistance and is certified to SAE J1176 standards. The innovative design ensures performance and maximum uptime, while the system engineering extends hose assembly life. It is suitable for use with -24 hose dash size.

SKU: 4S24BFA24

Supplier Part Number (MPN): 4S24BFA24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.2 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female BSP Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female BSPP 60 deg Cone Swivel	Construction Style Crimp	Cut-Off Factor 5.13 in	Dimension Standards SAE J1176	Dimensions 9.88 in L x 2.82 in W x 4.66 in H	Drop Dimensions 1.67 in	End Gender 1 Female	End Size 1 24	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2.17 in	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size G 1-1/2

Product Questions & Answers (1)

Question by: Janice G on Oct 4, 2025, 6:45 PM

Will this fitting hold up to some serious pressure in a hydraulic system, or should I be looking at something else?

Answer by: Customer Support on Oct 6, 2025, 1:49 PM

This Danfoss / Eaton Aeroquip fitting is made from carbon steel with Dura-Kote plating, which gives it superior corrosion resistance and should hold up well in demanding hydraulic applications.
