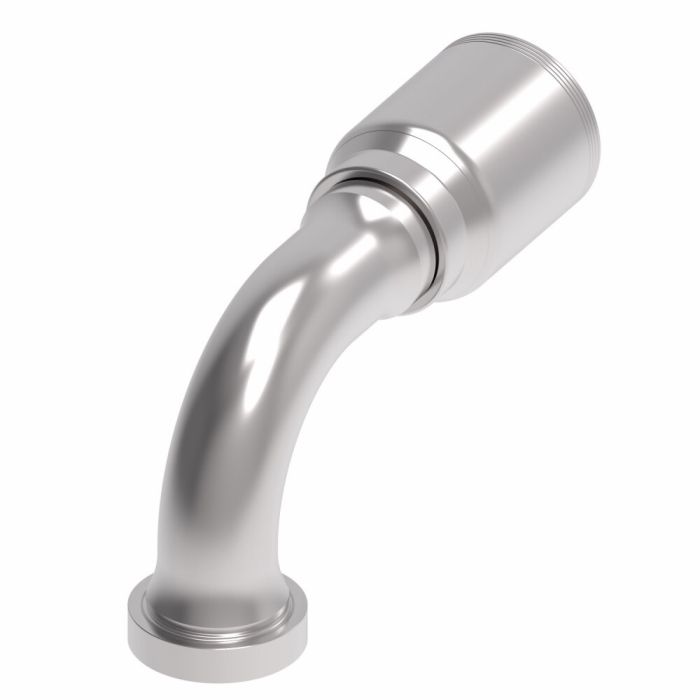

Cat Flange 90°

Description & Features

The Cat Flange 90 is engineered by Danfoss Power Solutions to meet rigorous industry standards. This product features Dura-Kote plating providing outstanding corrosion resistance. With a flanged end type and compatibility with hose fittings the flange is intended for demanding industrial applications.

Created from high-quality carbon steel this hose fitting is part of the Danfoss/Eaton 4S Series and ensures robust performance and prolonged hose assembly life. The innovative design of this elbow fitting contributes to maximum uptime.

Meeting SAE J1176 certification standards ensures reliability and compliance. It has a hose dash size of -24 and a drop dimension of 4.1600. Ensure your systems are durable and efficient with this precision-engineered component.

ECCN: EAR99

Supplier Part Number: 4S24CTB24

Specifications

Alternate Part Numbers Alternate Part Number MI-08051576, Alternate Part Number MINO-00015X01201, Alternate Part Number MINO-00925X11056	Certifications SAE J1176	Drop Dimension 4.16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.82	Sub Brand None	Supplier Part Number 4S24CTB24	Product Weight 5.04 lbs

Product Questions & Answers (1)

Question by: Curt S on Nov 23, 2025, 1:42 PM

What size hose does this flange fit?

Answer by: Customer Support on Nov 24, 2025, 9:56 PM

This Cat Flange 90° is designed for a hose with a -24 dash size.
