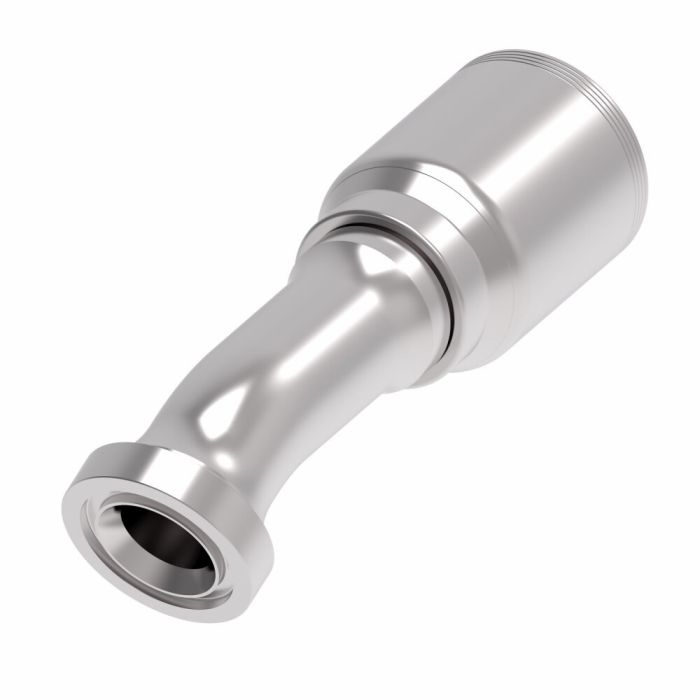

Ftng (perm) 4-sprl 4SCAT SPLIT FLNG - 2

Description & Features

This carbon steel fitting assembly is a Ftng (perm) 4-sprl 4SCAT SPLIT FLNG - 2, designed for hydraulic applications. Engineered for durability and performance, it features Dura-Kote plating for superior corrosion resistance, ensuring extended service life in demanding environments.

The 4S Series crimp hose fitting is built to SAE J1176 standards and features an innovative design to deliver maximum uptime. With a flanged end type 1 and a line/hose/tube end type 2, it's designed for a hose dash size of -24. This Aeroquip fitting has a drop dimension of 0.7600 inches and weighs 5.43 lb.

SKU: 4S24CTD24

Supplier Part Number (MPN): 4S24CTD24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.97 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 5.9 in	Dimension Standards SAE J1176	Dimensions 10.4 in L x 2.82 in W x 3.42 in H	Drop Dimensions 0.76 in	End Size 1 24	Finish Dura-Kote™	Fitting Type 22-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Rusty J on Nov 28, 2025, 8:54 AM

So this fitting is carbon steel, right? Will it rust if it gets wet a lot?

Answer by: Customer Support on Nov 30, 2025, 7:56 AM

Dura-Kote plating gives this carbon steel fitting assembly enhanced corrosion resistance, which can help extend its service life even in demanding, wet conditions.
