Ftng (Perm) 4-sprl

Description & Features

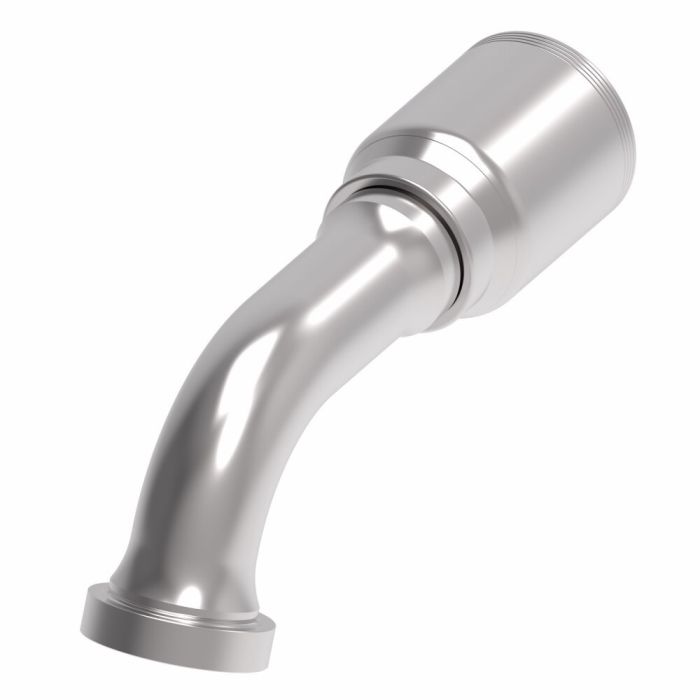

Designed for demanding hydraulic hose assemblies, this carbon steel crimp fitting from Aeroquip's 4S Series connects a -24 dash size hose to a CAT flange interface at a 67.5-degree elbow angle. The flanged end meets SAE J1176 certification standards, making it a reliable choice for high-pressure hydraulic circuits requiring a secure, leak-resistant connection at an offset angle.

Ftng (Perm) 4-sprl fittings feature Dura-Kote plating, which provides corrosion resistance suited to harsh operating environments. The fitting assembly is engineered to extend hose assembly service life and support maximum system uptime. With a drop dimension of 3.02 inches and a product width of 2.82 inches, the geometry is well-suited to routing in tight or angled configurations where straight or 90-degree connections are not practical.

SKU: 4S24CTE24

Supplier Part Number (MPN): 4S24CTE24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 9.64 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 6.57 in	Dimension Standards SAE J1176	Drop Dimensions 3.02 in	End Size 1 24	Finish Dura-Kote™	Fitting Type 67-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Kirk Y on Nov 30, 2025, 6:36 PM

What size hose does this fitting work with? Just wanna make sure I'm getting the right one.

Answer by: Customer Support on Dec 2, 2025, 8:43 AM

This fitting is designed for a -24 dash size hose.
