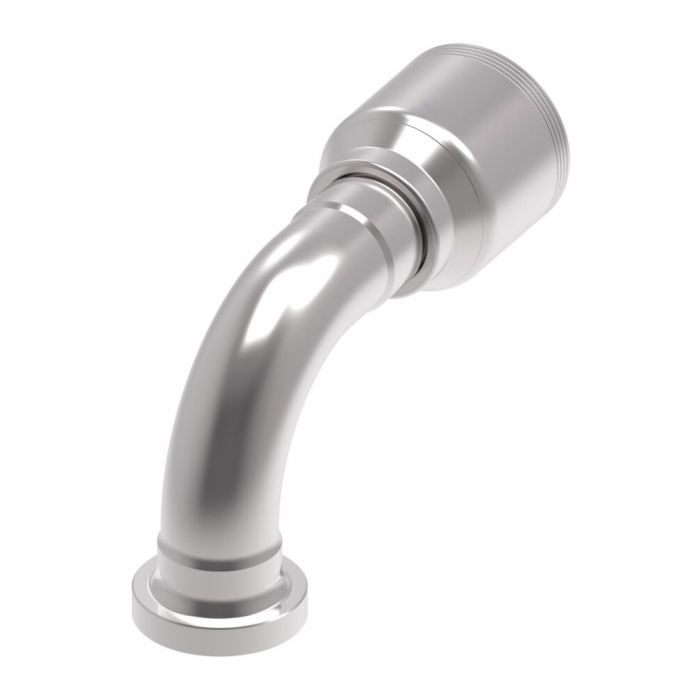

Split Flange Code 62 90°

Description & Features

The Split Flange Code 62 90 from Danfoss Power Solutions combines a robust design with superior performance for industrial applications. Constructed from carbon steel it offers exceptional durability and is engineered to extend hose assembly life thanks to its innovative design.

Featuring Dura-Kote plating this flange fitting ensures superior corrosion resistance making it ideal for demanding environments. The 90-degree configuration facilitates optimal system layout while compliance with SAE J1176 certifications assures high quality and reliability.

End Type 1 is flanged and End Type 2 is compatible with various line hose and tube connections. The product is built without adjustable or ratcheting components ensuring a straightforward and reliable installation process. It is particularly suited for industry-specific parts ensuring maximum uptime and efficiency in operational settings.

ECCN: EAR99

Supplier Part Number: 4S24FHB20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.01 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.84 in	Dimension Standards SAE J1176	Dimensions 8.35 in L x 2.5 in W x 5.32 in H	Drop Dimensions 4.09 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Hugh G on Apr 8, 2025, 11:58 AM

What kind of corrosion resistance does this flange fitting have?

Answer by: Customer Support on Apr 9, 2025, 12:15 PM

Dura-Kote plating provides superior corrosion resistance, making it well-suited for demanding environments.

Question by: Jerry L on Dec 27, 2025, 12:59 PM

does this flange fitting have any kind of adjustable or ratcheting feature, or is it fixed once you put it together?

Answer by: Customer Support on Dec 28, 2025, 5:43 PM

Fixed all the way through. There are no adjustable or ratcheting components built into this fitting, so once it's assembled, it stays where you put it. That makes installation pretty straightforward and cuts down on variables that could cause problems down the line. The 90-degree angle is set, and the connection between the flanged end and the line, hose, or tube end is permanent once made up.
