Ftng (Perm) 4Spiral

Description & Features

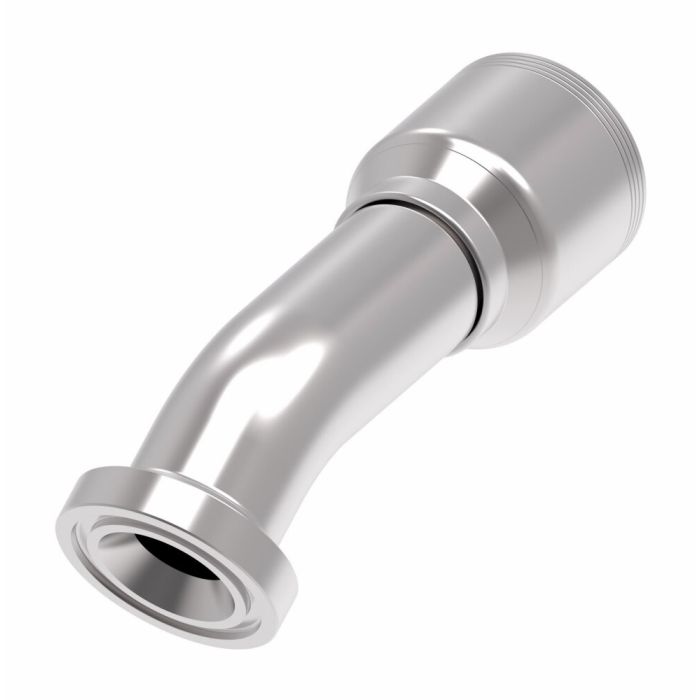

A carbon steel, SAE Code 62 flanged fitting designed for use with 4-spiral hose assemblies, this -20 dash size component connects a flanged end to a hose or tube end at a 30-degree elbow angle. Certified to SAE J1176, it is suited for high-pressure hydraulic circuits where reliable flange connections are required.

The Ftng (Perm) 4Spiral carries Aeroquip's Dura-Kote plating, which provides strong resistance to corrosion in demanding service environments. The fitting is engineered as part of a system-level approach to extend hose assembly service life and support consistent uptime in heavy-duty hydraulic applications.

SKU: 4S24FHF20

Supplier Part Number (MPN): 4S24FHF20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.58 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 5.42 in	Dimension Standards SAE J1176	Dimensions 8.28 in L x 2.5 in W x 3.79 in H	Drop Dimensions 1.06 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 30 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code B	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Pete H on Feb 11, 2026, 8:00 PM

So this fitting's good for high-pressure stuff, right? How much pressure are we talkin'?

Answer by: Customer Support on Feb 13, 2026, 7:21 PM

This fitting is certified to SAE J1176, indicating it's suited for high-pressure hydraulic circuits where reliable flange connections are needed.
