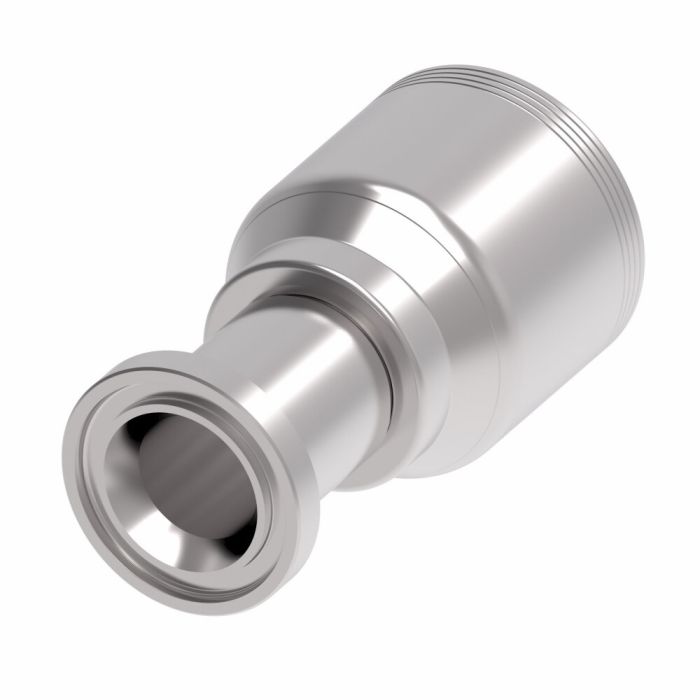

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Engineered to extend hose assembly life Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting offers exceptional durability with its Dura-Kote plating providing superior corrosion resistance. This fitting is crafted from carbon steel and is certified to SAE J1176 standards ensuring reliability in demanding applications.

The innovative design of this fitting delivers consistent performance and maximizes uptime. Featuring a flanged end type on one side and a line/hose/tube connection on the other it is an essential component for various industrial uses.

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is specifically designed for use with the 4S series crimp hose fittings SAE Code 61 flange making it a versatile and robust choice for hose fittings.

Supplier Part Number: 4S24FL20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.2 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 2.03 in	Dimension Standards SAE J1176	Dimensions 4.3 in L x 2.46 in W x 2.46 in H	End Size 1 24	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Keith R on Aug 9, 2025, 11:13 AM

Will this fitting hold up if it's constantly exposed to the elements and some pretty harsh chemicals?

Answer by: Customer Support on Aug 11, 2025, 6:16 AM

Dura-Kote plating gives this Eaton Aeroquip fitting enhanced corrosion resistance, which should extend its life even when dealing with harsh conditions.

Question by: Danny E on Jun 10, 2025, 11:43 AM

fitting's got Dura-Kote plating on it -- how well does that actually hold up against rust and corrosion out in the field?

Answer by: Customer Support on Jun 11, 2025, 5:20 PM

Dura-Kote is a corrosion-resistant plating applied specifically to extend the service life of the fitting in harsh or exposed environments. Carbon steel on its own is vulnerable to rust, but the Dura-Kote finish gives it meaningful protection against moisture and corrosive conditions. That's a big part of why Eaton Aeroquip uses it on assemblies like this one where long-term uptime matters.
