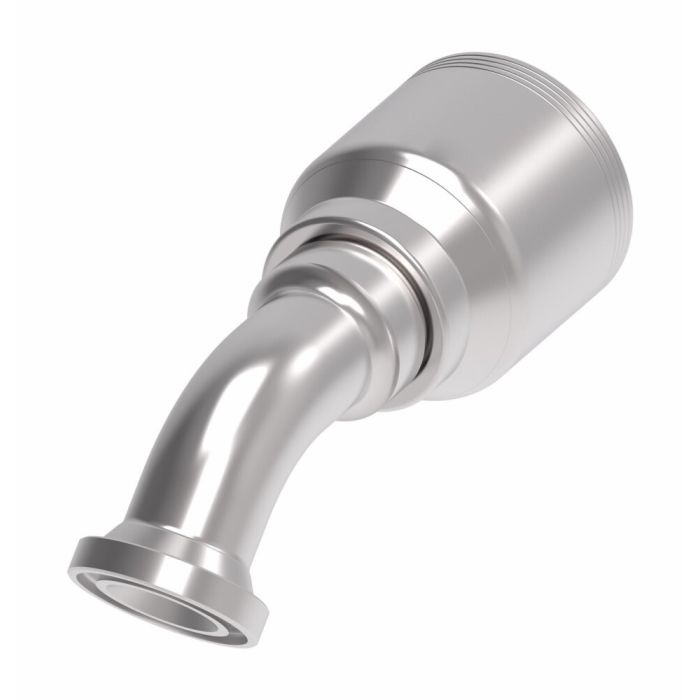

The Aeroquip Spiral Fitting made by Danfoss Power Solutions features Dura-Kote plating providing superior corrosion resistance. Its innovative design ensures performance and maximum uptime. Engineered to extend hose assembly life it is certified to SAE J1176 standards.
MPN: EAR99
Supplier Part Number: 4S24FLA20
This carbon steel fitting has a flanged end type 1 and a line/hose/tube end type 2 fitting a hose dash size of -20 with a drop dimension of 1.5600. The products width is 2.46.
Designed to meet demanding industrial applications it is not adjustable and does not include batteries. It is color-coded for ease of identification. The fitting is not machine-mountable requires no mandrel and does not have a check valve or a diode. Certified under NMFC: 50 this fitting is engineered for durability.
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051592, Alternate Part Number MINO-00015X01217
Certifications
SAE J1176
Drop Dimension
1.56
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-20
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.46
Sub Brand
None
Supplier Part Number
4S24FLA20
Product Weight
2.86 lbs
Product Questions & Answers (1)
Question by: Steve M on Jan 26, 2026, 2:52 PM
fitting says it's for a -20 hose dash size, that right? just want to make sure before I order cause returns are a pain
Answer by: Customer Support on Jan 28, 2026, 9:06 AM
Correct, the hose dash size on this one is -20. Worth double-checking your hose end before you pull the trigger, since the flanged end on side one and the line/hose/tube end on side two need to match up with what you're working with. The drop dimension runs 1.56 inches and the overall width is 2.46 inches, so those numbers can help you confirm fit on your end before the order goes through.
