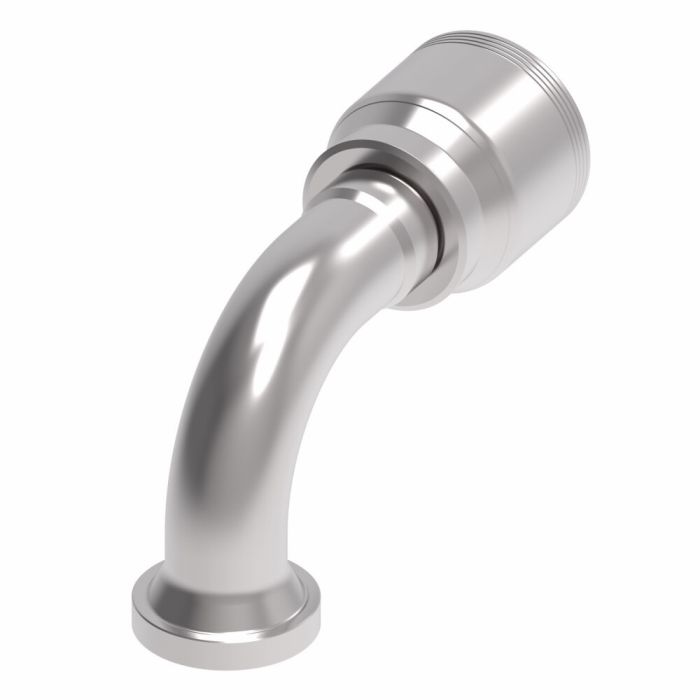

FTNG (PERM) 4-SPRL

Description & Features

The FTNG (PERM) 4-SPRL by Danfoss Power Solutions (II LLC Aeroquip) is designed for demanding industrial applications. Featuring Dura-Kote plating it ensures superior corrosion resistance enhancing the longevity of your hose assemblies.

This fitting is engineered with an innovative design to deliver consistent performance and maximize uptime. Constructed from durable carbon steel it is certified according to SAE J1176 standards. The flanged end type 1 and line/hose/tube end type 2 provide secure and reliable connections suitable for various industrial uses.

With a hose dash size of -16 and a drop dimension of 3.2200 this fitting is a versatile and reliable component for your industrial needs.

ECCN: EAR99

Supplier Part Number: 4S24FLB16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.37 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 3.81 in	Dimension Standards SAE J1176	Dimensions 6.56 in L x 2.38 in W x 4.26 in H	Drop Dimensions 3.22 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Curt J on Jan 19, 2026, 11:43 AM

What size hose does this fitting work with? Just wanna make sure it's the right one for my setup.

Answer by: Customer Support on Jan 21, 2026, 10:19 AM

It's made for a -16 hose dash size, which should match what you're working with.

Question by: Bobby M on Nov 17, 2025, 12:28 PM

fitting's got Dura-Kote plating on it -- does that actually hold up when things get wet or rusty out in the field?

Answer by: Customer Support on Nov 18, 2025, 3:28 PM

Carbon steel fittings without a protective coating can start showing corrosion pretty fast depending on the environment. The Dura-Kote plating on this one is specifically there to push back against that. It extends the life of the hose assembly overall, which means fewer surprise failures and less downtime swapping out components that gave up too soon.
