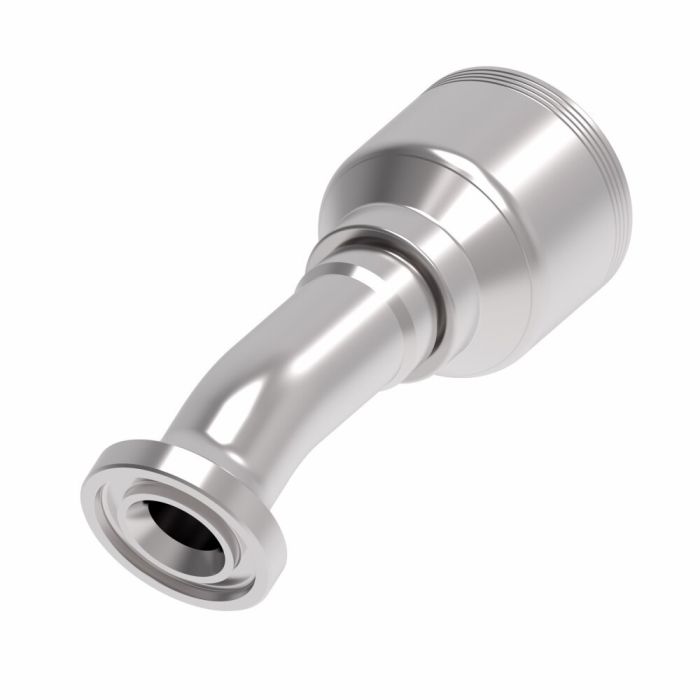

Split Flange Code 61 22.5°

Description & Features

The Split Flange Code 61 22.5 is engineered for industrial applications delivering optimal performance and durability. Manufactured by Danfoss Power Solutions it features a robust carbon steel construction ensuring long-term reliability.

Utilizing Dura-Kote plating this Aeroquip spiral fitting offers superior corrosion resistance. The innovative design maximizes uptime and extends hose assembly life meeting the rigorous standards of SAE J1176 certification.

Designed with a flanged end and compatible with lines hoses or tubes it meets various industrial needs. With a drop dimension of 0.6700 it fits a hose dash size of -20.

MPN: 4S24FLD20

Supplier Part Number: 4S24FLD20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.83 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 4.63 in	Dimension Standards SAE J1176	Dimensions 8.024 in L x 2.46 in W x 3.08 in H	Drop Dimensions 0.67 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 22-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Hugh W on Nov 10, 2025, 8:14 PM

does this fit a -20 hose dash size or do i need to look at something different for that

Answer by: Customer Support on Nov 12, 2025, 7:40 AM

the -20 hose dash size is exactly what this fitting is built for. The drop dimension runs 0.6700, and it connects a flanged end to a line, hose, or tube on the other side. Carbon steel construction with Dura-Kote plating, so corrosion resistance is solid for industrial environments. If your setup calls for a Code 61 flange at a 22.5 degree angle, this one fits the bill.
