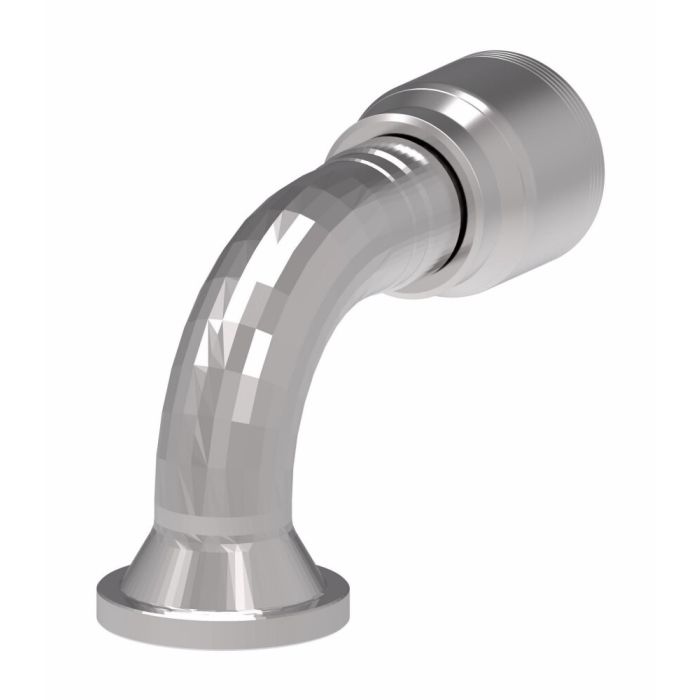

Ftng (Perm) 4Spiral

Description & Features

Enhance your hydraulic systems with the robust Ftng (Perm) 4Spiral, designed for high-performance applications. This fitting assembly features a flanged connection on one end and accommodates lines, hoses, or tubes on the other, providing versatile integration into various setups. Constructed from durable carbon steel, it ensures lasting reliability even under demanding conditions.

Engineered to meet SAE J1176 standards, this fitting includes innovative Dura-Kote plating that offers superior corrosion resistance, extending the life of your hose assemblies. Its efficient design is tailored to deliver maximum uptime and performance, making it an ideal choice for industrial applications where durability and efficiency are paramount. The fitting's dimensions, with a drop dimension of 2.3400 and a hose dash size of -20, enable seamless compatibility with your existing setup.

SKU: 4S24FLE20

Supplier Part Number (MPN): 4S24FLE20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.12 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 4.95 in	Dimension Standards SAE J1176	Dimensions 8.39 in L x 2.46 in W x 4.17 in H	Drop Dimensions 2.34 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 67-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Harold R on Oct 24, 2025, 5:45 PM

Hey, will this fitting hold up if I'm running it pretty hard most days?

Answer by: Customer Support on Oct 26, 2025, 1:20 PM

Constructed from carbon steel and featuring Dura-Kote plating, this fitting assembly is designed for lasting reliability, even under demanding conditions. It’s engineered to meet SAE J1176 standards.
