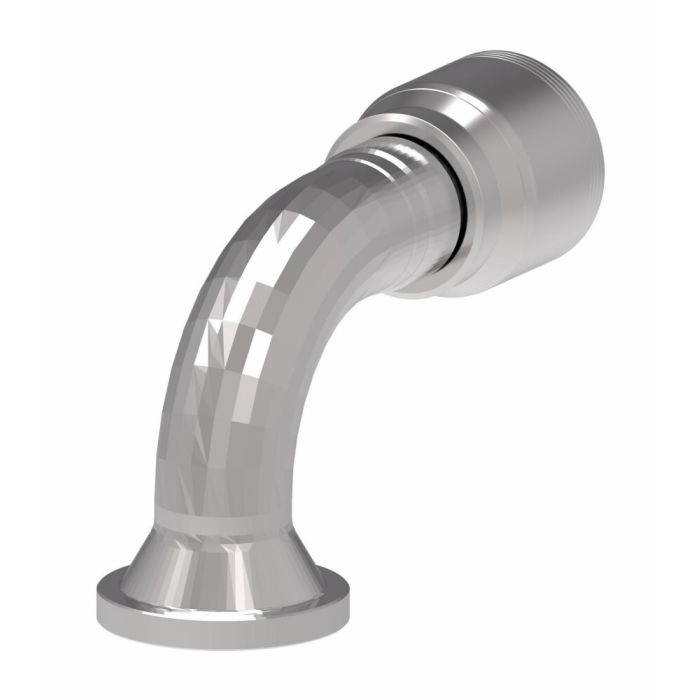

DANFOSS / EATON AEROQUIP FITTING 4 SPRL 61 FLANGE

Description & Features

Designed for demanding hydraulic hose assembly applications, the Danfoss / Eaton Aeroquip Fitting 4 Sprl 61 Flange is a carbon steel, SAE Code 61 flanged fitting in a -20 hose dash size configuration. It carries SAE J1176 certification and is built to perform reliably in high-pressure industrial hydraulic systems where connection integrity and service life are critical considerations.

Eaton Aeroquip's Dura-Kote plating provides strong corrosion resistance, making this fitting suitable for environments where long-term durability is a priority. The fitting's system-engineered design is intended to extend hose assembly service life and support maximum uptime in hydraulic circuits. With a flanged end type on one side and a line/hose/tube connection on the other, it accommodates straightforward integration into standard SAE Code 61 flange systems.

SKU: 4S24FLG20

Supplier Part Number (MPN): 4S24FLG20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.41 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 5.24 in	Dimension Standards SAE J1176	Dimensions 8.7 in L x 2.46 in W x 3.47 in H	Drop Dimensions 2.04 in	End Size 1 24	Finish Zinc-Plated	Fitting Type 60 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Bobby W on Mar 7, 2026, 5:17 PM

got a -20 hose line running into a SAE Code 61 flange port on a hydraulic manifold, this fitting gonna work for that setup?

Answer by: Customer Support on Mar 9, 2026, 10:46 AM

For a -20 hose connection into a Code 61 flange port, that's exactly what this fitting is built to handle. One end is flanged for the Code 61 port, and the other side connects to your line, hose, or tube. Carbon steel construction and SAE J1176 certification back up its use in high-pressure industrial hydraulic circuits, so you're not guessing on suitability there.

Question by: Neal F on Jun 12, 2025, 8:09 PM

got a -20 hose and need a code 61 flange end. is this fitting set up for that?

Answer by: Customer Support on Jun 14, 2025, 11:51 AM

For a -20 hose dash size in an SAE Code 61 flange system, this one matches that setup. It has a flanged end on one side and a line, hose, or tube connection on the other, and it’s a carbon steel fitting assembly.
