Female Swivel DIN 24° Seat

Description & Features

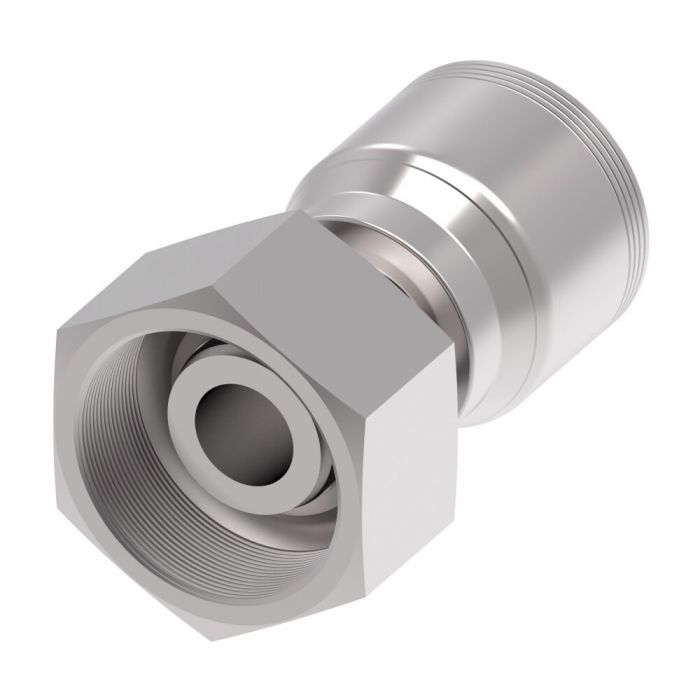

This Eaton Aeroquip fitting assembly features a female swivel DIN 24° seat, designed for hydraulic applications requiring secure and reliable connections. Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended service life.

Engineered to SAE J1176 standards, the Female Swivel DIN 24° Seat ensures optimal performance and uptime. This fitting is suitable for -20 hose dash size, providing a dependable solution for demanding hydraulic systems.

SKU: 4S25DS20

Supplier Part Number (MPN): 4S25DS20

Alternate Part Numbers: MI-08051611, MINO-00015X01236

Specifications

Alternate Part Numbers Alternate Part Number MI-08051611, Alternate Part Number MINO-00015X01236, Alternate Part Number MINO-00925F06391	Certifications SAE J1176	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 Metric	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.45	Sub Brand None	Supplier Part Number 4S25DS20	Product Weight 1.89 lbs

Product Questions & Answers (1)

Question by: Larry H on Jun 29, 2025, 4:44 PM

fitting's got a DIN 24 degree seat on it -- does that mean it'll work with standard metric hydraulic lines, or is there something else I need to match up on my end?

Answer by: Customer Support on Jun 30, 2025, 7:00 PM

Metric end compatibility is exactly what this fitting is built around. The DIN 24 degree seat is a metric connection standard, so as long as your line side is also metric and sized for a dash 20, you're in good shape on that end. The hose side is a crimp-style connection from the Eaton Aeroquip 4S series, so your hose needs to be compatible with that crimp system. Both ends need to match up, not just the seat type.
