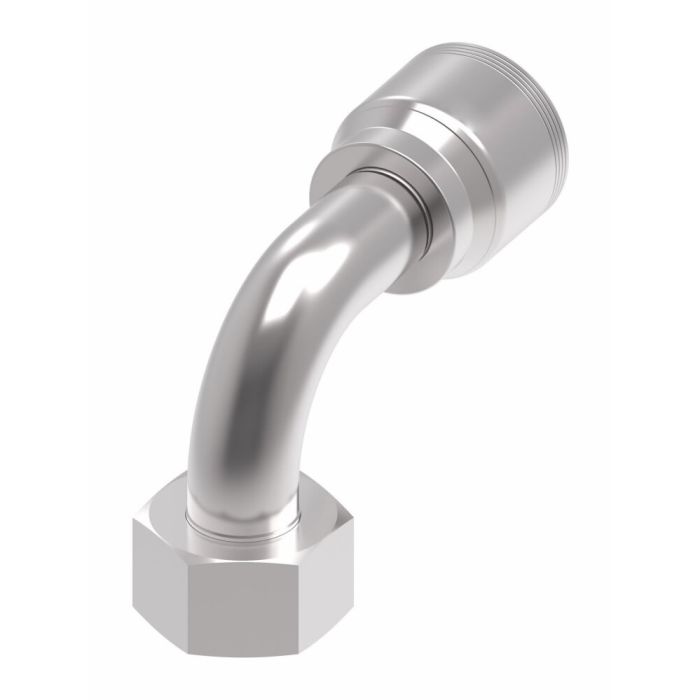

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting designed for maximum durability and efficiency features advanced Dura-Kote plating providing superior corrosion resistance.
This fitting is engineered to extend hose assembly life through its innovative design ensuring optimal performance and reliability in demanding applications.
Manufactured from high-quality carbon steel this product is certified to meet SAE J1176 standards guaranteeing safety and compliance.
Ideal for industrial settings where longevity and dependability are paramount this fitting supports a female metric end type and is compatible with line/hose/tube connections.
MPN: 4S25DSB16
Supplier Part Number: 4S25DSB16
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051615, Alternate Part Number MINO-00015X01240, Alternate Part Number MINO-00925F02556
Certifications
SAE J1176
Drop Dimension
2.99
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
Metric
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.10
Sub Brand
None
Supplier Part Number
4S25DSB16
Product Weight
2.10 lbs
Product Questions & Answers (3)
Question by: Roger P on May 7, 2025, 6:34 PM
Will this fitting hold up if its constantly being used?
Answer by: Customer Support on May 9, 2025, 3:58 PM
Designed for demanding industrial applications, this Eaton Aeroquip fitting is built to deliver performance and maximum uptime, with an innovative design extending hose assembly life.
Question by: Pete S on Sep 9, 2025, 8:45 AM
got a -16 four-wire spiral hose, is this the right fitting size for it?
Answer by: Customer Support on Sep 11, 2025, 6:54 AM
For hose fitment, the key callout here is the Hose Dash Size of -16, so it matches a -16 four-wire spiral setup. The connection style on this part is a female metric end on one side, with the other end listed for line, hose, or tube connections.
Question by: Dean J on Sep 23, 2025, 6:31 PM
fitting says female metric end, does that mean it threads into a metric port on the equipment side, or is that the hose connection end?
Answer by: Customer Support on Sep 24, 2025, 8:14 PM
The metric end is the female connection point, so it mates with a male metric fitting or port. The opposite end handles the line, hose, or tube connection. With a -16 dash size, you're working with a larger-diameter assembly, so just confirm your port thread spec matches metric before ordering.
