Ftng (Perm) 4-sprl

Description & Features

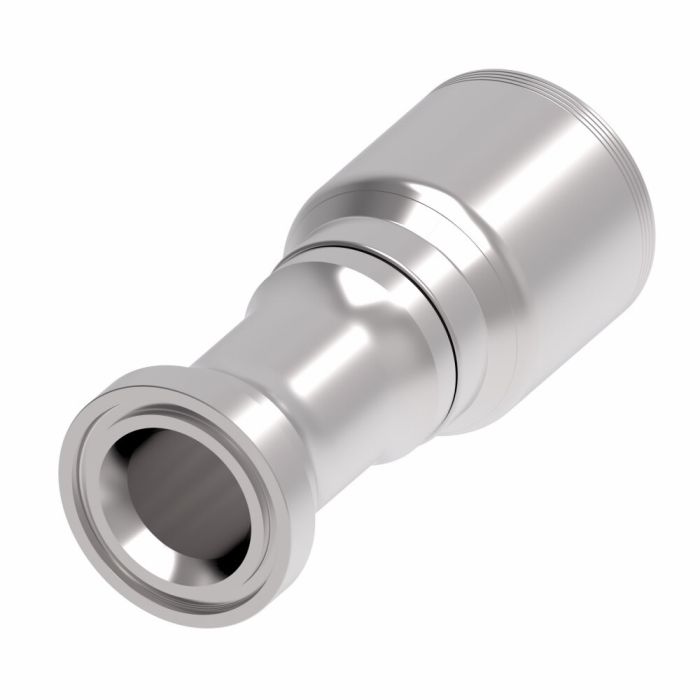

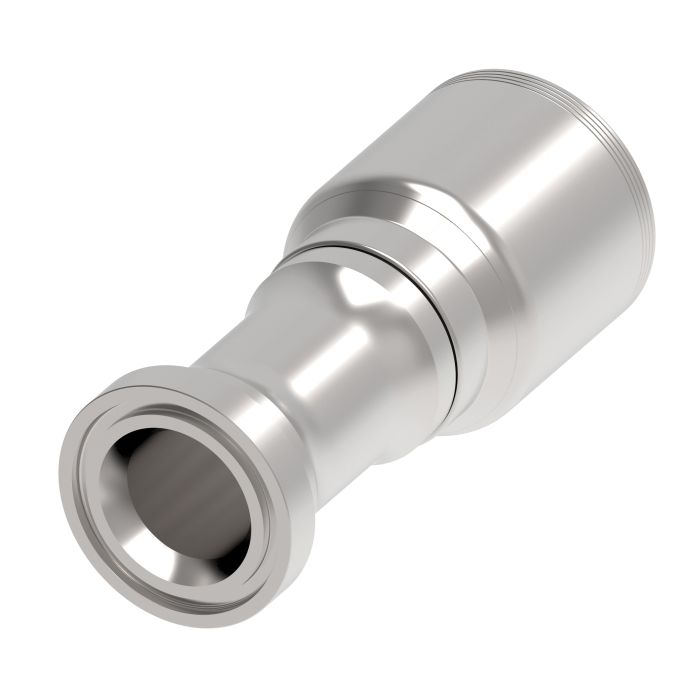

Designed for permanent crimp hose assemblies, this carbon steel flange fitting is part of the Aeroquip 4S Series and carries a -32 hose dash size with a flanged end type on one side and a hose end on the other. It conforms to SAE J1176, making it a recognized fit for demanding hydraulic circuit applications where dimensional and performance standards matter.

The Ftng (Perm) 4-sprl features Dura-Kote plating, which provides a measurable level of corrosion resistance suited to harsh industrial environments. As a system-engineered fitting, it is built to work within Aeroquip's 4S Series assembly ecosystem, contributing to extended hose assembly service life and reduced downtime between maintenance intervals.

SKU: 4S32CT32

Supplier Part Number (MPN): 4S32CT32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.22 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 5.15 in	Dimension Standards SAE J1176	Dimensions 8.3 in L x 3.39 in W x 3.39 in H	End Size 1 32	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Keith M on Feb 2, 2026, 5:07 PM

Will this fitting hold up in a hydraulic system that sees a lot of vibration and movement?

Answer by: Customer Support on Feb 3, 2026, 5:13 PM

Dura-Kote plating is included for corrosion resistance, and it is system-engineered to extend hose assembly life which will help reduce downtime, even in environments where there is a lot of movement.
