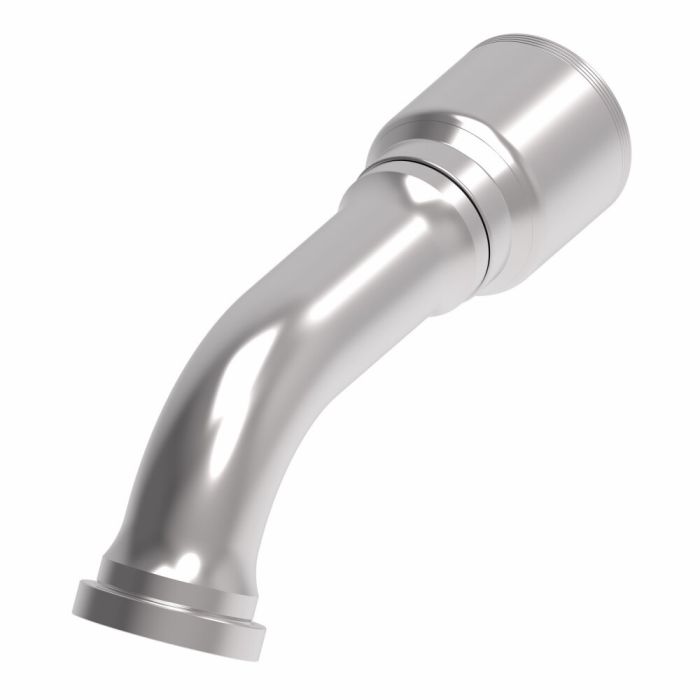

Designed for permanent crimp hose assemblies, this carbon steel fitting from Aeroquip's 4S Series features a CAT flange end with a 60-degree elbow configuration, sized for -32 hose dash size applications. The flanged end meets SAE J1176 certification, making it suited for use in high-demand hydraulic systems where reliable end connections are critical.
The Ftng (Perm) 4-sprl carries Dura-Kote plating for corrosion resistance across challenging service environments. Engineered as part of a system-matched 4S Series lineup, these fittings are designed to extend hose assembly service life and support maximum uptime in demanding industrial hydraulic circuits. With a drop dimension of 3.44 inches and an overall width of 3.39 inches, this fitting assembly ships as a single unit.
SKU: 4S32CTG32
Supplier Part Number (MPN): 4S32CTG32
|
Alternate Part Numbers
MINO-00925X11079
|
Certifications
SAE J1176
|
Drop Dimension
3.44
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-32
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
3.39
|
Sub Brand
None
|
Supplier Part Number
4S32CTG32
|
Product Weight
9.23 lbs
|
