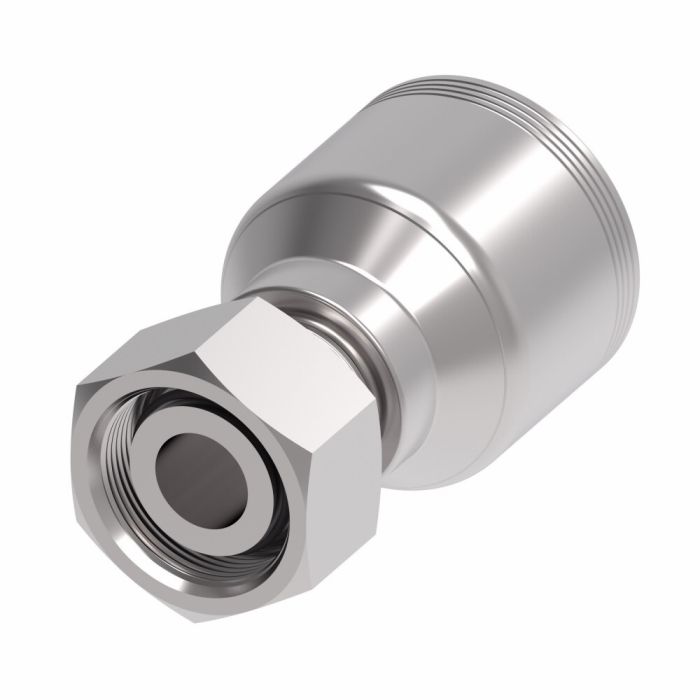

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Dura-Kote plating ensures this fitting provides outstanding resistance to corrosion over time which contributes to system longevity. The innovative design of this product is engineered to deliver reliable performance and enhance assembly life for industrial applications. Made from carbon steel it is a robust component that meets SAE J1176 certification standards.

MPN: 4S32DL20

Supplier Part Number: 4S32DL20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.96 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 2 in	Connection Type Female DKOL Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female DKOL DIN 24 deg Seat Swivel	Construction Style Crimp	Cut-Off Factor 1.79 in	Dimension Standards SAE J1176	Dimensions 4 in L x 2.46 in W x 2.46 in H	End Gender 1 Female	End Size 1 32	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.97 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size M45x2

Product Questions & Answers (2)

Question by: Danny O on Oct 12, 2025, 10:45 AM

does this fitting meet any kind of industry standard or is it just a generic carbon steel piece?

Answer by: Customer Support on Oct 14, 2025, 8:04 AM

SAE J1176 certified, so it's not just off-the-shelf hardware. That certification covers performance requirements for hose fittings used in hydraulic systems, which gives you a baseline of confidence when you're spec'ing it into an application that needs documented compliance.

Question by: Kent M on Apr 24, 2025, 3:35 PM

Will this fitting hold up in a hydraulic system running at high pressure all day long?

Answer by: Customer Support on Apr 26, 2025, 3:13 PM

Dura-Kote plating is included, so you can expect outstanding corrosion resistance over time, contributing to the overall longevity of your system.
