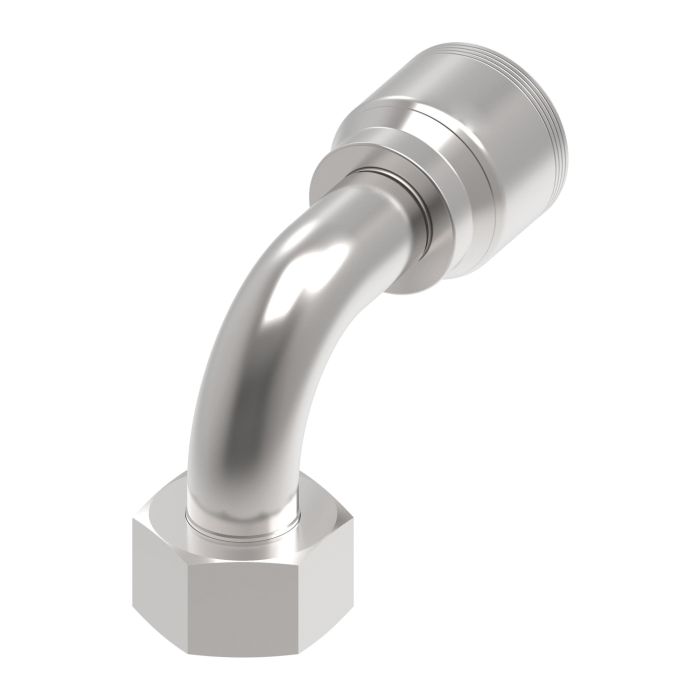

Female Swivel DIN 24° Seat 90°

Description & Features

Crafted by Danfoss Power Solutions the Female Swivel DIN 24 Seat 90 is engineered with a carbon steel construction ensuring robust durability. The fitting boasts Dura-Kote plating providing superior corrosion resistance and complying with SAE J1176 standards.

With an innovative design this fitting delivers exceptional performance and maximum uptime. The end connections are designed to work seamlessly with Metric and Line/Hose/Tube applications. The 4-wire spiral TTC fitting ensures a secure and reliable attachment suitable for various industrial applications.

The Female Swivel DIN 24 Seat 90 is system-engineered to extend the hose assembly life making it a valuable component in heavy-duty environments. The drop dimension of 3.5 inches and a width of 2.36 inches ensure compatibility with a wide range of setups.

Supplier Part Number: 4S32DSB16

MPN: EAR99

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.38 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 2 in	Connection Type Female DKOS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female DKOS DIN 24 deg Seat Swivel	Cut-Off Factor 3.82 in	Dimension Standards SAE J1176	Dimensions 6.57 in L x 2.36 in W x 4.57 in H	Drop Dimensions 3-1/2 in	End Gender 1 Female	End Size 1 32	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2.36 in	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size M52x2

Product Questions & Answers (2)

Question by: Patty W on Oct 14, 2025, 6:17 PM

Will this fitting hold up if I'm running a hydraulic system pretty much constantly?

Answer by: Customer Support on Oct 16, 2025, 2:53 PM

Built with carbon steel and Dura-Kote plating, this fitting is designed for durability and corrosion resistance, which should extend its life in demanding applications.

Question by: Billy J on Jun 6, 2025, 5:22 PM

fitting's got a DIN 24 seat and that 90-degree angle, will it hook up to metric line connections without needing an adapter or anything extra?

Answer by: Customer Support on Jun 8, 2025, 6:11 AM

Carbon steel construction with a swivel end makes this a direct-connect option for metric tube and hose applications. The DIN 24 degree seat handles the sealing at the connection point, and the 90 degree body positions the hose run where you need it without stacking on extra hardware. No adapter should be needed for standard metric line setups.
