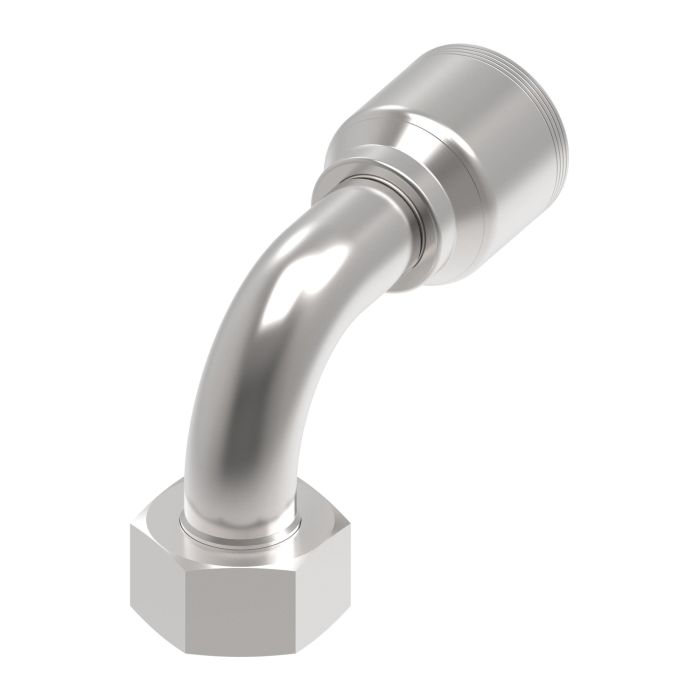

Female Swivel DIN 24° Seat 90°

Description & Features

The Female Swivel DIN 24 Seat 90 by Danfoss Power Solutions is engineered with an innovative design to deliver optimal performance and maximize uptime. This fitting is certified under SAE J1176 ensuring industry-standard quality and reliability.

Constructed from high-grade carbon steel it features Dura-Kote plating for superior corrosion resistance enhancing the longevity of the hose assembly. Its 4-wire spiral TTC construction guarantees a robust connection suitable for various industrial applications.

With a 3.5000 drop dimension and a product width of 2.46 this fitting accommodates a range of hose dash sizes specifically -20. Compatible with metric end types and hose tube or line connections this fitting ensures a secure and efficient link.

Designed to function without adjustment this dependable component is a valuable addition to any industrial setup requiring high resilience and dependable performance.

Supplier Part Number: 4S32DSB20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.02 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 2 in	Connection Type Female DKOS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female DKOS DIN 24 deg Seat Swivel	Cut-Off Factor 3.86 in	Dimension Standards SAE J1176	Dimensions 7.24 in L x 2.46 in W x 4.73 in H	Drop Dimensions 3-1/2 in	End Gender 1 Female	End Size 1 32	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2.36 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size M52x2

Product Questions & Answers (1)

Question by: Tony T on Nov 1, 2025, 2:15 PM

Will this fitting hold up okay in a hydraulic system that runs pretty much non-stop? Gotta keep the production line moving, y'know.

Answer by: Customer Support on Nov 3, 2025, 6:07 AM

Constructed from high-grade carbon steel with Dura-Kote plating, this fitting is designed for superior corrosion resistance, which should definitely help extend its life even under constant use.
